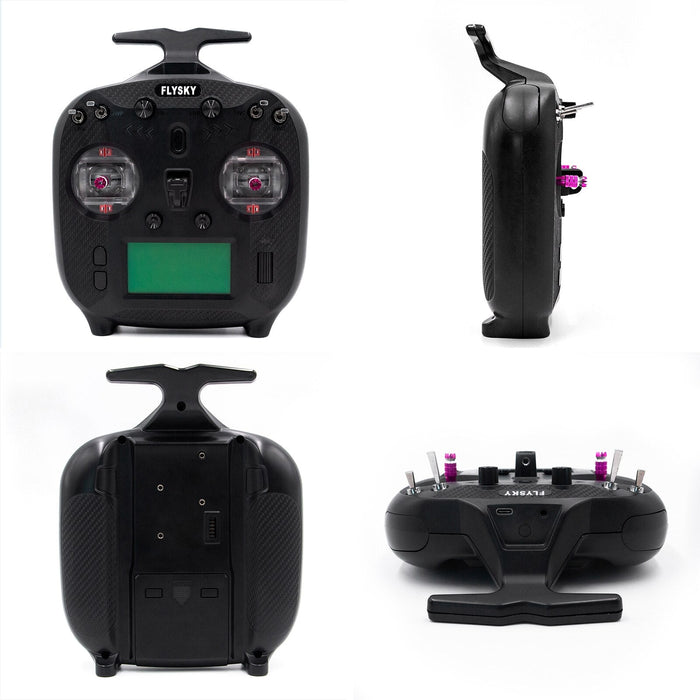

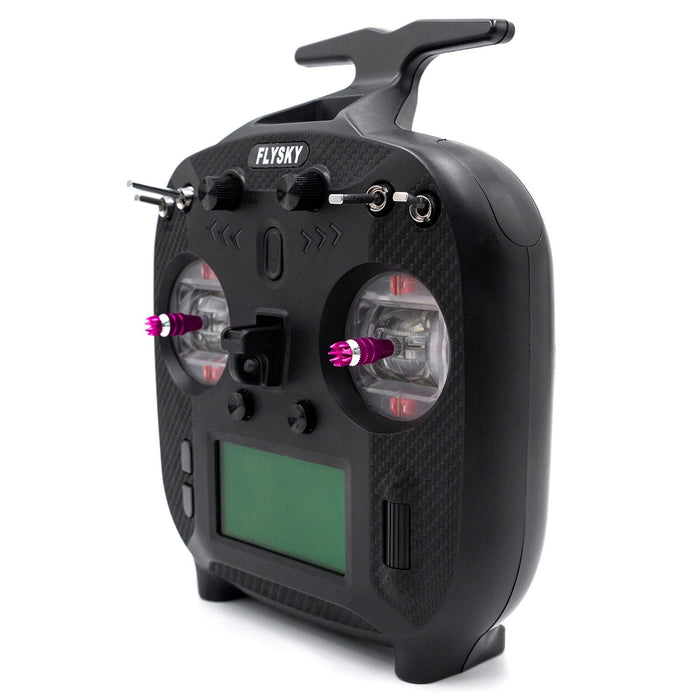

FlySky FS-ST8 2.4 GHz ANT Transmitter with FS-SR8 receiver (Upgraded Version)

FlySky FS-ST8 2.4 GHz ANT Transmitter with FS-SR8 receiver (Upgraded Version)

1. Brand: FLYSKY
2. Product Model: FS-ST8
3. Channels: 8-10

Hey, Geeks Here is the brand new FlySky FS-ST8 2.4 GHz ANT Transmitter with FS-SR8 receiver (Upgraded Version) from FLYSKY. But why is it here? Why does it arrive? Well, it is made to fill the gap between Flysky’s budget radios like the FS- I6x  and their premium PL 18. This uses the Flysky brand new A N T  transmitter protocol which is supposed to be an upgrade from the older AFHDS 2A but a bit lower than the premium AFHDS 3. It has 10 channels, which is pretty standard and plenty for quadcopters and even slightly complicated airplanes. And you can even use it to track other ground vehicles with this although.

FlySky FS-ST8 2.4 GHz ANT Transmitter does feature an external module port on the back for Jr-style modules. However, it is only compatible with only FLYSKY modules. So no crossfire or ELRS for you.

So, should you invest in this?  Yes, if you want to switch from the older AFHDS 2A to the new A N T transmitter protocol, the FS-ST8 is newer and better, with a lot more capabilities for a little bit more money than the older FS-I6x.

Specifications and Features:

Transmitter:

1. Brand: FLYSKY
2. Product Model: FS-ST8
3. Channels: 8-10
4. Adaptive Receiver: FS-SR8 ( Adapts Receiver with ANT Protocol )
5. Model Type: Helicopters, Gliders, Delta-wing Airplanes, Multicopters, Engineering vehicles, Robots, Cars or Boats, etc.
6. RF: 2.4GHz ISM
7. Maximum Power: < 20dBm (e.i.r.p.) （EU）
8. 2.4GHz Protocol: ANT
9. Distance: >1000m（Air distance without interference）
10. Channel Resolution: 4096
11. Battery: 1.5AA*4 / 2S Lipo（JST）
12. Charging Interface: NO
13. Data Output: PWM/PPM/i-BUS/S.BUS
14. Low Voltage Warning: AA battery: <4.2V/ Lipo battery: <7.2V
15. Antenna Type: Built-in double antennas
16. Display: 128*64 LCD (Black and white Dot Matrix Screen)
17. Temperature Range: -10℃ ~ +60℃
18. Humidity Range: 20% ~ 95%
19. Languages: Chinese, English
20. Online Update: Yes
21. Color: Black
22. Size: 176*210.9*82.5mm
23. Weight: 420g

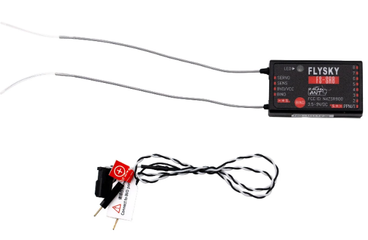

Receiver:

1. Product Model: FS-SR8
2. Adaptive Transmitter: FS-ST8 (Adapts Transmitter with ANT Protocol )
3. Adaptive Models: Helicopters, Gliders, Delta-wing airplanes, Multicopters, Engineering Vehicles, Robots, Cars or Boats, etc.
4. Numbers of Channel: 8
5. Maximum Power: < 20dBm (e.i.r.p.) （EU）
6. RF: 2.4GHz ISM
7. 2.4GHz Protocol: ANT
8. Distance: >1000m (Air Distance without Interference）
9. Antenna Type: Two Antennas
10. Input Power: 3.5~9V/DC
11. Data Output: PWM/PPM/i-BUS/S.BUS
12. Online Update: Yes
13. Temperature Range: -10℃ ~ +60℃
14. Humidity Range: 20% ~ 95%
15. Size: 44.8*26.6*11.3mm

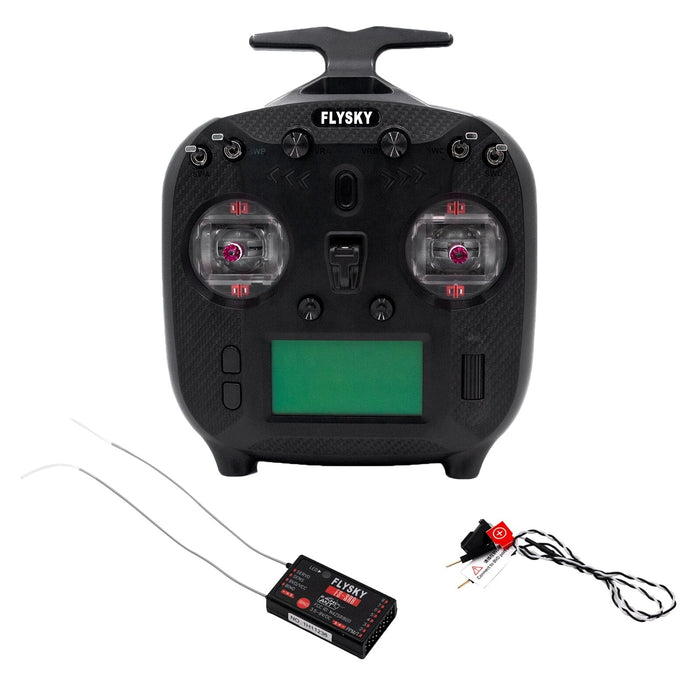

Package Includes:

1 x FlySky FS-ST8 2.4 GHz ANT Transmitter

1 x FS-SR8 receiver
