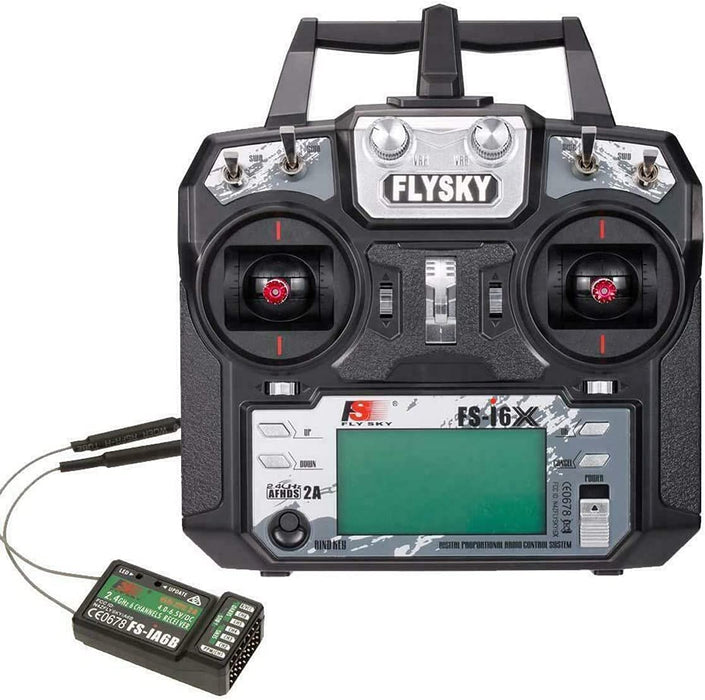

Flysky FS-i6X 10CH 2.4GHz AFHDS RC Transmitter with FS-iA6B Receiver

Flysky FS-i6X 10CH 2.4GHz AFHDS RC Transmitter with FS-iA6B Receiver

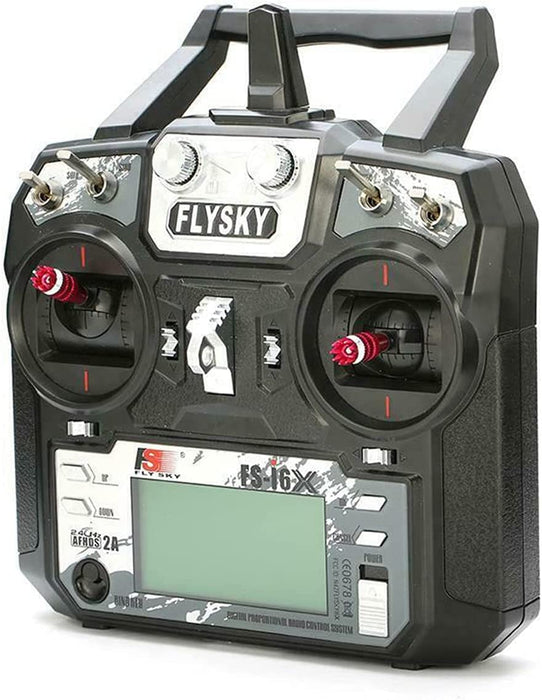

Specification forFS-i6X RC Transmitter :

1. Item:FS-i6X RC Transmitter
2. Tx Channel: 6 to 10
3. Model Type: Fixed-Wing/Glider/Helicopter
4. RF Range: 2.408-2.475GHz
5. RF Power : < 20dBm
6. RF Channel: 135
7. Bandwidth : 500KHz
8. 2.4GHz System : AFHDS 2A / AFDHS
9. Modulation Type: GFSK
10. Stick Resolution: 4096
11. Low Voltage Warning: < 4.2V
12. DSC port: PS/2 Port PPM
13. Chargeable: No
14. Antenna Length: 26mm (Dual Antenna)
15. Weight: 392g
16. Power : 6V DC 1.5A
17. Display: STNTransflective Display, LCD 12864 Lattice, VA 73x39mm, LCD with white backlight
18. Size : 174 x 89 x 190 mm
19. Online Update: Yes
20. Color: Black
21. Certificate: CE0678, FCC

Specifications forFS-iA6B RC Receiver:

1. Rx Channels: 6
2. Suitable models: Airplane / glider / helicopter Health
3. Frequency range :2.4-2 .48 GHz
4. Transmitting power: not more than 20dBm
5. Receiver sensitivity:-105dBm
6. 2.4G modes: automatic frequency second generation digital system
7. Encoding: GFSK
8. Antenna length: 26 mm * 2 (dual antenna)
9. Weight: 19.3 g
10. Input power :4.0-6 .5 V DC
11. Dimensions: 47 x 33.1 x 14.7 mm
12. Color: Black
13. Certification: CE0678, FCC
14. i-BUS Interface: Yes
15. Data acquisition interface: Yes
16. Color: Black.
17. Model Type : Airplane / Glider / Helicopter
18. Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G

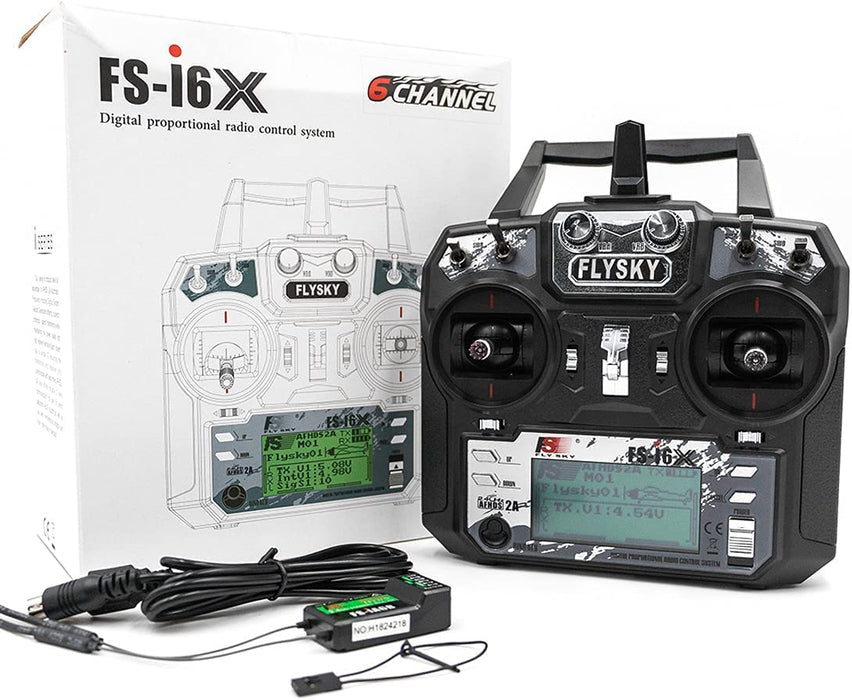

Package Includes :

1 x Fly sky FS-i6X 6CH 2.4GHz AFHDS 2A RC Transmitter.
1 x FS-iA6B 2.4GHz 6CH Receiver with Binding cable.
1 x PS2 to USB Update Cable.
1 x User Manual.
