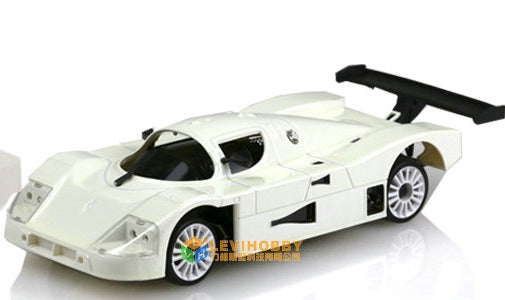

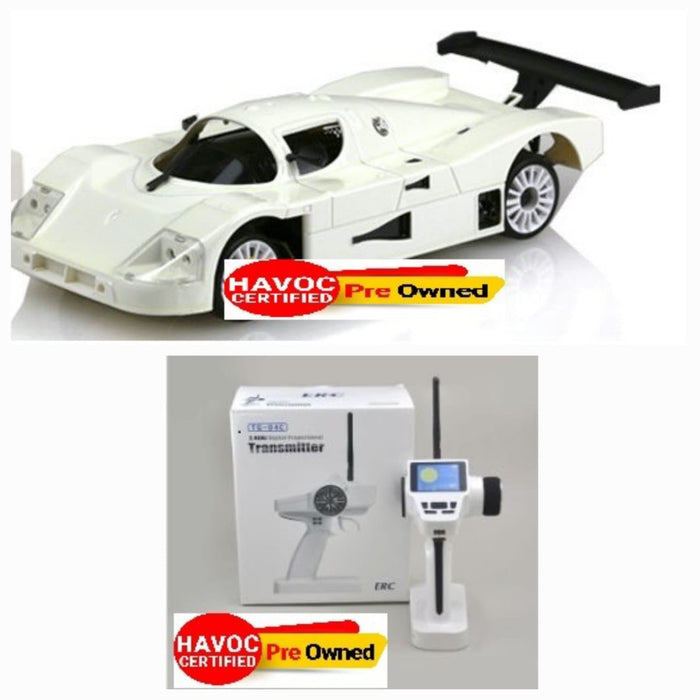

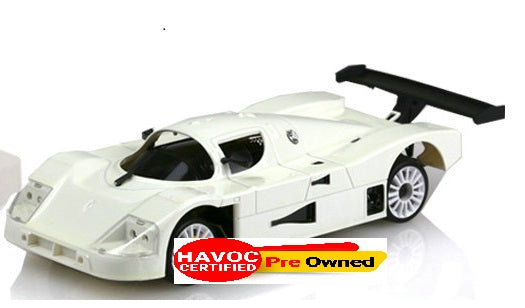

FIRELAP RACING CAR & RADIO 1/28 SCALE-QUALITY PREOWNED

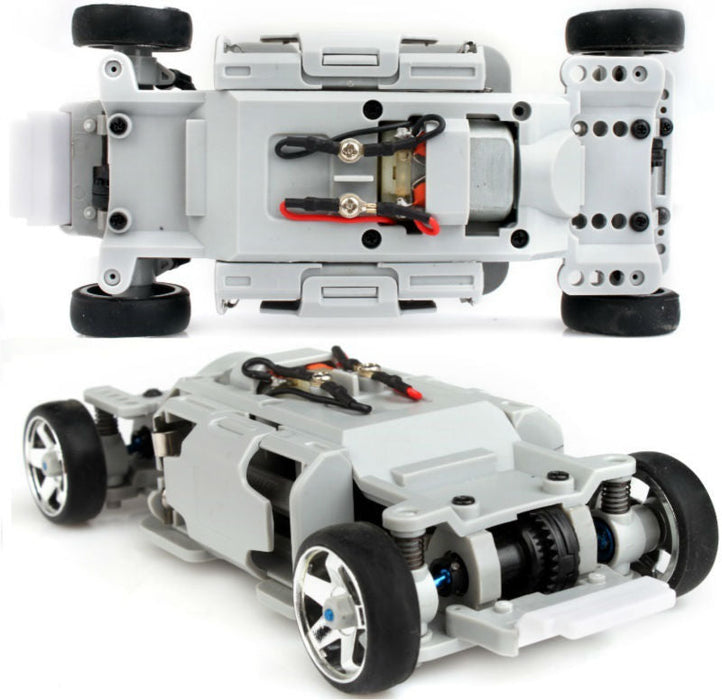

Firelap 1/28 scale mini z aluminum carbon rc car chassis- CAR & RADIO. COLOUR MAY VARY
car photo is different before order call 080-22482248 for excat photos
All in one, ready to run package, only require 4 AAA and 8 AA battery.
1:28 digital proportional RC car together with the transmitter and beautiful painted body. With a new painting technique, you will find an amazing hand feeling from this transmitter.
It is a real RC model,In 1:28 RC model field, except KYOSHO in Japan, this one IW04M is the best one.
Now here come it is, Let’s enjoy the perfect 4WD drifting RCR, whenever and wherever, have fun.
Car Specification:
-
Length: 126 mm
-
Height: 35 mm
-
Width: 76 mm
-
Weight : around 130 g
-
Ground clearance: 4mm
- NO BOX
Technical Data: RADIO WITHOUT ANTENNA AND NO RECEIVER
a. TX module:
1) RF Range: 2.400-2.4835GHz ISM BAND
2) Code Type: FSK
3) RF Power: less than 20 DBm
4) TX Current: 150mA typical
5) Modulation signal: 1-3CH, standard PPM pulse width control signal
6) Working Voltage: DC4.8V-6.0V
7) Automatic selects and change frequency (frequency hopping) after turning on the TX
b. RX module:
1) Frequency Band: 2.400-2.4835GHz ISM BAND
2) Working Voltage: DC4.8V-6.0V
3) RX Current: 30mA typical
4) RX Sensitivity:-110dBm typical
5) Demodulate Output signal: standard 1-4CH,
signal pulse width1.0-2.0ms
6) LED Indicator light for RX Sensitivity and frequency bind
7)Control Distance: More than 100M on the opening ground.
Feature:
1.Be used for Professional RC Car and RC Boat.
2.2.4 inch TFT color Screen Display
3. Resolution:1024(256)
4.Display English&Chinese two languages (also,we can do any languages as per your requirement)
5.Can be individually adjusted data for each types of ESC (include RC car and RC boat)
6.Reversible Hand Operation(wheel section can be installed to left-or right hand driving)
7.Real-time dynamic screen
8.Stopwatch function
9.10-model memory,control distance:150M
10.Exponential(EXP Steering and Thorttle)
11.Steering dual rate (d/r-st)
12.Anti-skid braking system (ABS)
13.Digital trim: Steering trim, throttle trim, steering d/r
14.Function select lever function (fnc-dt1/ dt2/dt3/dt4)
15.Tension adjustment funciton
16.Can be used with Firelap 2.4G MINIZ RC Car, easy to bind.
