Esc 120Amp(YEP)

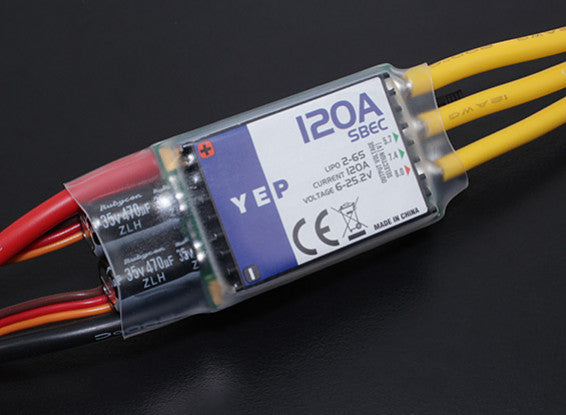

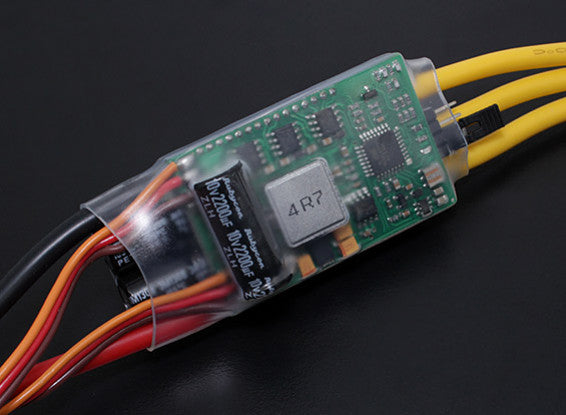

YEP 120A LV (2-6S) Brushless Speed Controller

Features:
• Powerful 5.7-7.4-8.0v/12A Selectable BEC
• Optional programming card for convenient setup
• ESC has separate programming lead built-in so there is no need to unplug from RX
• Superfine throttle resolution provides first-rate and highly accurate linearity
• Super smooth adjustable start-up mode
• Constant RPM mode (governor mode)
• Adjustable F3A brake.
• 3 steps adjustable normal EMF brake
• High anti-interference capability
• Low voltage cut-off protection with automatic adjustment for NiCd/NiMH/Li-Ion/LiPo/LiFePO4
• Soft cut-off option at low voltage, slows motor RPM gradually rather than hard cutoff (LVC)
• Low voltage cut-off can be disabled
• Variable cut-off voltage / cell
• Active free-wheeling circuit allows for unlimited "partial load" capability
• LED status display
• Adjustable motor timing from 0° to 30°
• Blocked rotation protection (senses a jammed motor and stops motor rotation)
• Motor reversing from ESC (no need to change ESC/motor wires)
• Over-temperature protection and overload alarm
• Anti sparking circuit: reduces connection sparks (for HV ESC)
• Throttle signal loss protection. If the signal is lost for 3 seconds, the power will automatically cut-off.
• Safe power-on. (Motor will not start until throttle is returned to lowest position)

Specs:
Max Cont Current: 120A
Max Burst Current: 135A for 10 Seconds
Input Voltage: 2-6 cells li-XX or 6-16 Ni-MH/Ni-Cd Battery
BEC: 5.7v - 7.4v - 8.0v/12A Selectable BEC
PWM: 8~16 KHz
Max RPM: 240,000rpm for 2 Poles Brushless Motor
PCB Size: 66 x 32.5 x 25.7mm
Weight: 100g (including wires)
