EMAX ES08MA II 12g Mini Metal Gear Analog Servo For RC Model

EMAX ES08MA II 12g Mini Metal Gear Analog Servo For RC Model

• Operating Voltage: 4.8V~6.0V
• Operating Current: 200mA/60º
• Operating Speed: 0.12sec/60º at 4.8V; 0.10sec/60º at 6V
• Stall Torque: 1.5/1.8 kg.cm 20.8/24.9 oz.in (4.8V/6v)

Description:

This is EMAX ES08MA II 12g mini metal gear analogue servo. This is basically used in science projects, robotic equipment, and RC models also. It has metal gear for a better experience.

Specification:

• Operating Voltage: 4.8V~6.0V
• Operating Current: 200mA/60º
• Operating Speed: 0.12sec/60º at 4.8V; 0.10sec/60º at 6V
• Stall Torque: 1.5/1.8 kg.cm 20.8/24.9 oz.in (4.8V/6v)
• Dead Band: 1-2 uSec
• Gear Material: Metal
• Connector Wire Length: 25 cm
• Connector Type: Futaba/JR compatible

Features:

• Ultra-thin design, with a width of 9mm, this servo is an ideal choice for gliders.
• Made of special engineering plastics, the gear set and case are super tough.
• Noble potentiometer: assuring high accuracy and coherence.
• The dual bearing design maintains low backlash and smoothness of the servo for a long time.

Wire Description:

• RED:VCC (Positive)
• Brown:GND (Negative)
• Orange:PWM (Signal)

Package Included:

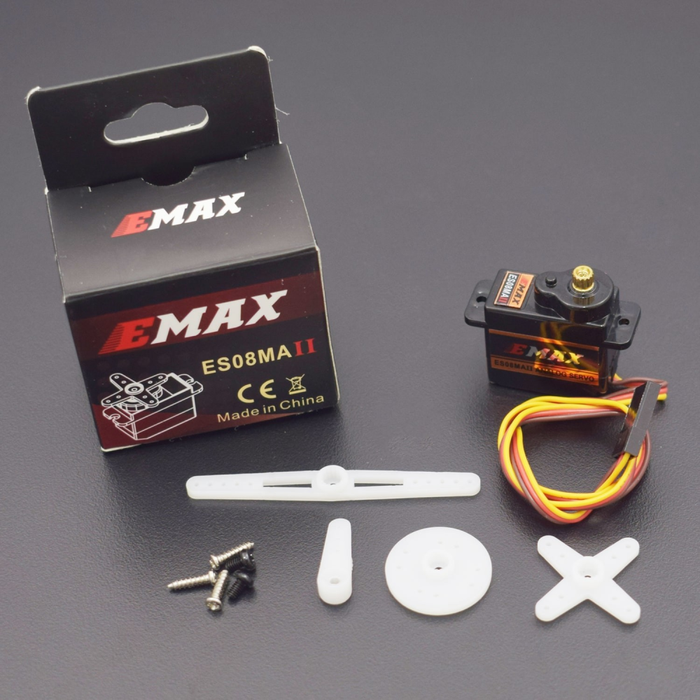

1 x EMAX ES08MA II 12g Mini Metal Gear Analog Servo for RC Model
