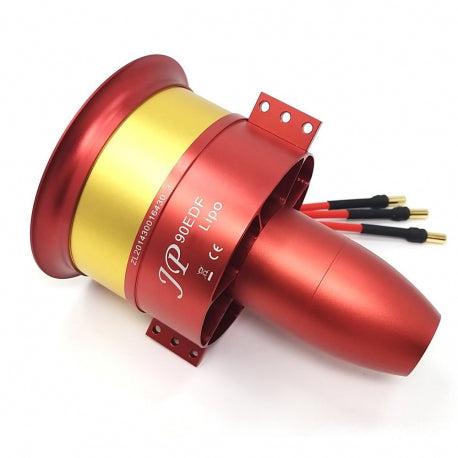

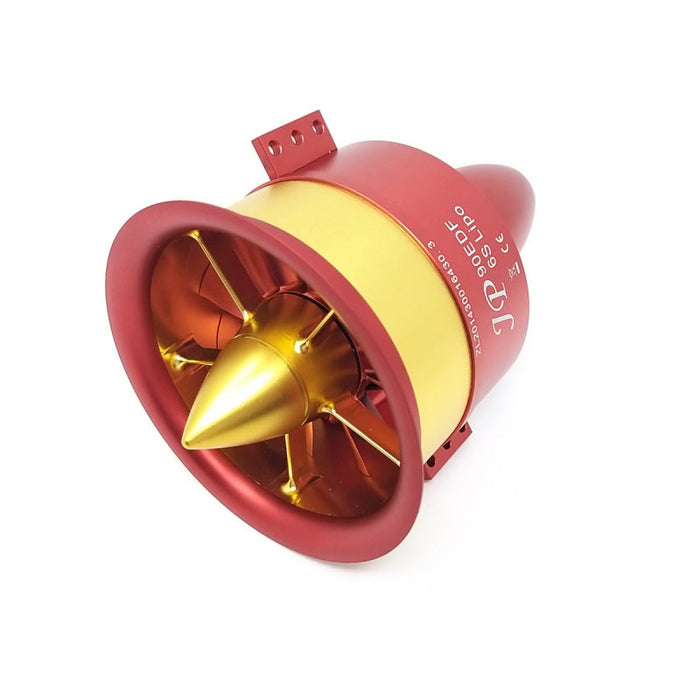

EDF Ducted Fan JP Hobby 90mm + 6s Motor 1750Kv (CCW)
EDF Ducted Fan JP Hobby 90mm + 6s Motor 1750Kv (CCW)

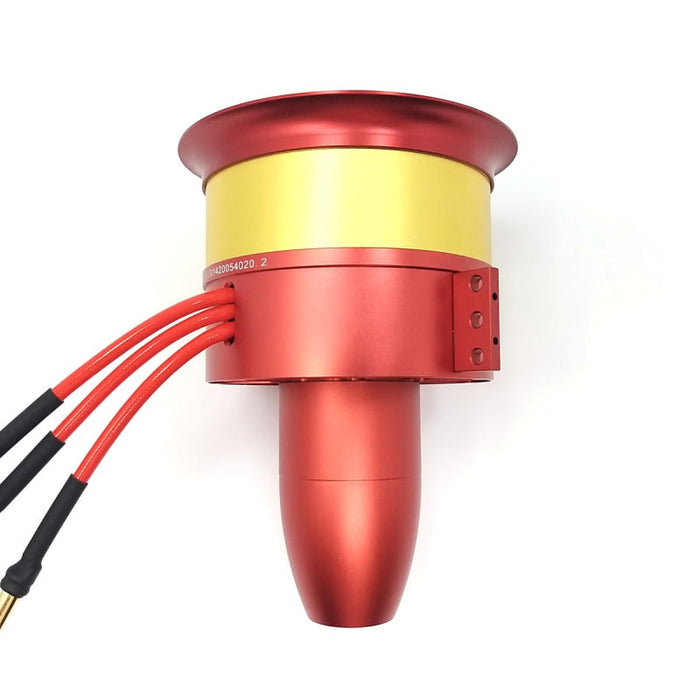

DATA SHEET
|
Length (mm): |
74.12mm (without motor / Cone) |
|
Weight (gr): |
459 gr |
|
EDF thrust (categorization) |
3-4kg, 4-5kg |
|
Direction of Rotation (EDF Rotor) |
Classic Counter Clock Wize (CCW) |
|
EDF Diameter Class (mm): |
90 |
|
EDF Outside Diameter (mm): |
94.5 mm |
|
EDF Inner Diameter (mm) : |
90.5 mm |
|
Rotor Diameter (mm): |
90 mm |
|

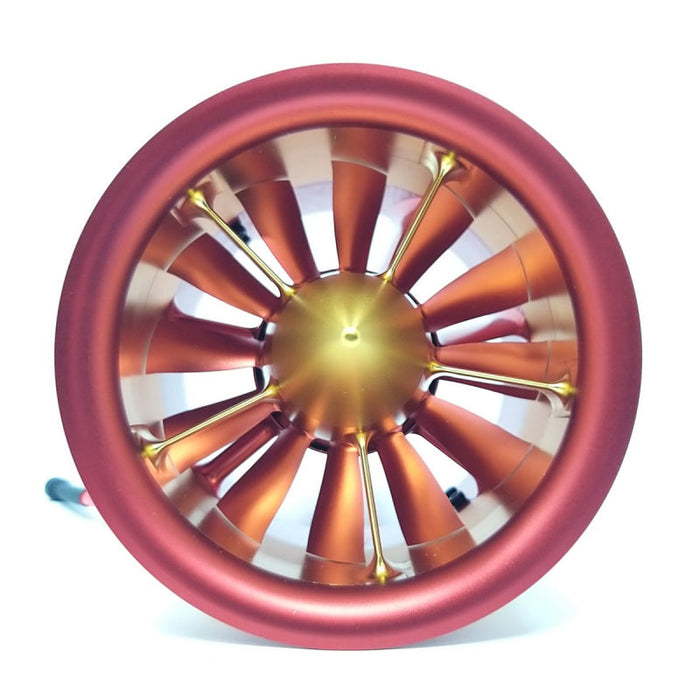

Blades: |
12 |
|
Stators: |
8 |
|
Turbine shroud |
Metal |
|
EDF Rotor |
Metal |
|
Turns/min/Volt (Kv): |
1750 Kv |
|
Motor Type: |
Out-Runner |
|
Motor Diameter (mm): |
42.65 mm |
|
Shaft diameter (mm): |
6 |
|
Battery Cells: |
6s - 22.2v |
|
Connection: |
PK 5.5mm |
Description

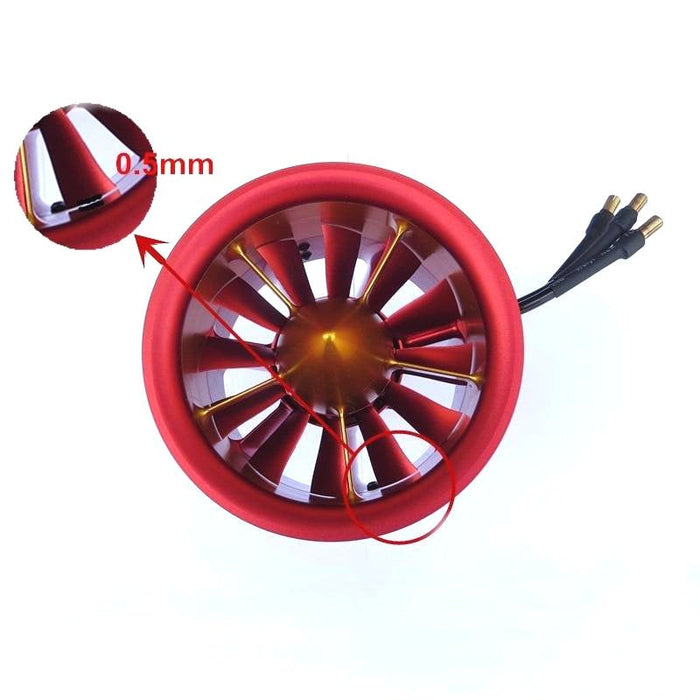

- The V2 version offers an exceptionnal reduced gap of 0.25mm between each blade edge and the EDF shroud for more efficiency.
- Jingpin Hobby uses High grade aluminium alloy material for highest rigid structure and lightest weight.
- The shroud acts as a heat sink, removing heat from the motor. This design creates a more efficiently running motor and will provide peak performance while extending the lifespan of the motor.
- The highly rigid structure design is capable of running up to 88,000 RPM to produce extremely high efflux velocity for maximum speed and efficiency.
- Anti Blade flying out design,the Blades be safety kept in the shroud and without damage.It is the best replacement for your plastic or carbon shroud if you want to have a safety EDF fan.
- Each metal blade is precisely made of High Grade Aluminum alloy to generate jet airflow. Every blade has been tested for 8 hours of metal fatigue test as well as in the dynamic balance machine for calibration, making it bring a better and safer user experience for every RC fan.
- You could assemble our EDF system with any other motor without losing dynamic balance effect.
The motor and fan unit comes assembled and balanced from the factory.
Measures
About the above measures : they have been read on the test bench with the intake lip on the unit. The measures have been made using a bench stabilized power source. Results may changed depening upon your equipment and situation.
|
Description / LiPo |
6s (22.2v) |
6s (24.0v) |
6s (25.2v) |
|
Thrust: |
3.57 kg |
4.01 kg |
4.32 kg |
|
Current: |
103 A |
117 A |
126 A |
|
Power: |
2286 W |
2808 W |
3175 W |
|
Recommended ESC: |
120 A / LV |
150 A / LV |
150 A / LV |
|
Recommended battery: |
3500mAh 40C |
3500mAh 40C |
3500mAh 40C |
Specifications
- Special high grade aluminum quality
- Motor Kv: 1750
- Motor type: JP 4250-Ⅵ-1750kv (6mm axe) 12 poles (outrunner)
- Rotor: 90mm 12 blades aluminium
- External diameter: 94.5mm
- Internal diameter: 90.5mm
- Ejection diameter: nc
- Combo max thrust: 4.32kg
- Weight: 459g (combo EDF + lip + motor )
- Max efficiency: 90 %
- Recommended max. rotation speed: 75,600 RPM
- Speed Control Advanced Timing Setting: 15°
- Connections: Banana / PK 5.5mm (in place)
Content
- 1x JP Hobby 6s 90mm full metal EDF unit
