Dys D3548-6 790Kv Bldc Motor

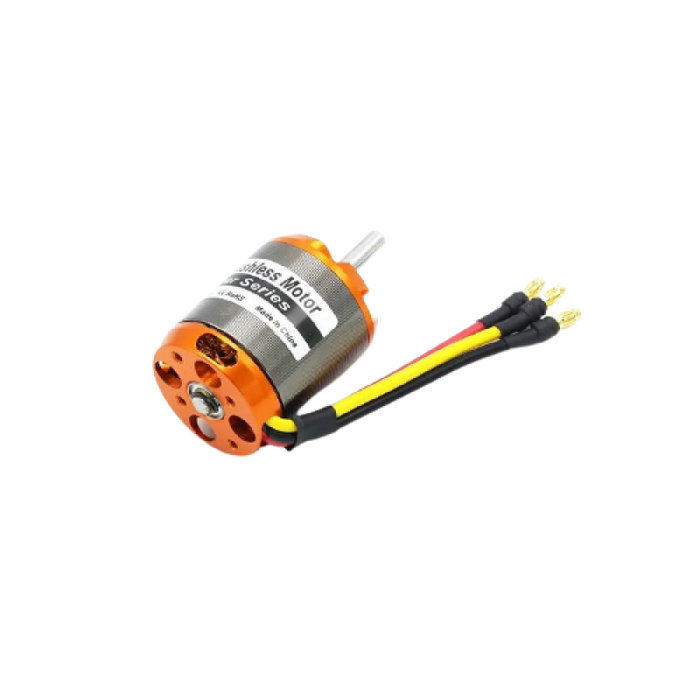

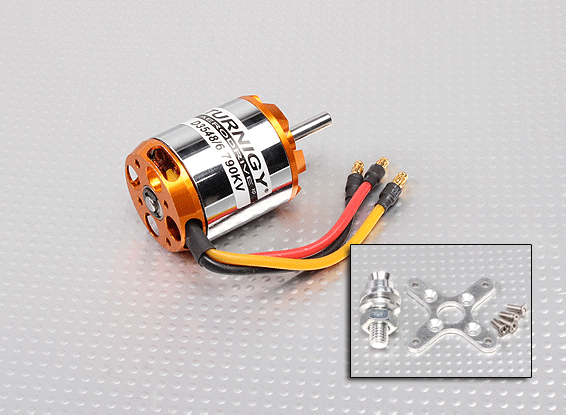

DYS D3548-6 790 KV BLDC Motor
Description:
This DYS High-Quality D3548-6 790 KV brushless outrunner motor is specifically made to power Quadcopters and Multirotors. It is a 790kV motor. It provides high performance, superpower, and brilliant efficiency. These motors are perfect for medium size quadcopters with 12 inches to 13-inch propellers.
The motor comes with 3mm banana male connector attached which can be directly connected with 70A ESC without any soldering requirement
With a 3S LiPo battery, 70A ESC, and high efficiency 10″ propellers, these motors provide up to 1650gms of thrust each. Using 4 of these motors on a quadcopter with orange propellers will give you a total of 3.1kg thrust! Use this to build powerful and efficient quadcopters.
This is a low price and excellent quality Brushless Motor. It comes with Bullet Connectors already soldered.
APPLICATION :
- FPV Racing Drones
- Quadcopters
- Multirotors
- RC Airplanes
- UAV
Features:
- The steel design is capable of withstanding competitive conditions.
- Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
- Compact size.
- Offers great performance and value for money.
- Smooth throttle response for best RC experience.

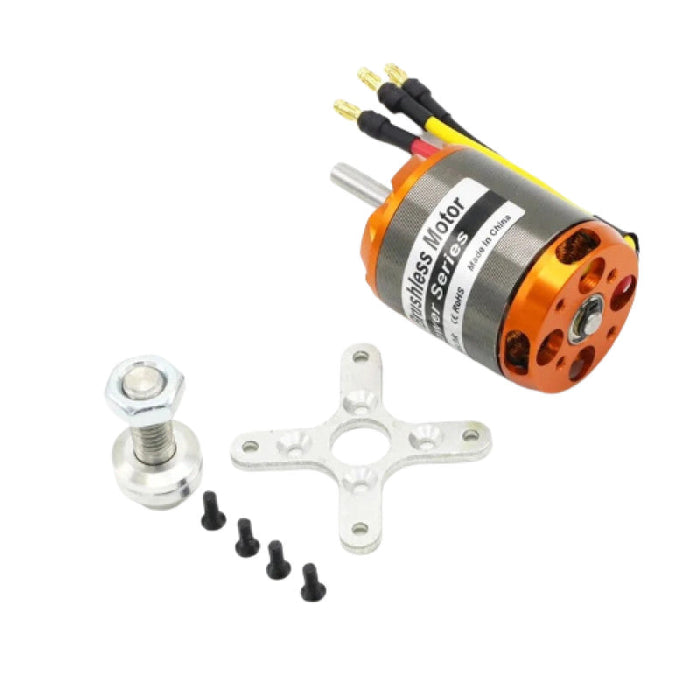

Package Included:
1 x DYS D3548-6 790 KV Outrunner Brushless Drone Motor
1 x Prop Adapter
1 x A Motor Holder (X-type) and set of screws
1 x User Manual
Specification:
| Compatible LiPO Batteries |
3S ~ 5S |
| Model |
D3548-6 |
| Motor KV (RPM/V) |
790 |
| Shaft Diameter (mm) |
5 |
| Maximum Power (W) |
717 |
| Poles |
12/14 |
| Maximum Thrust (gm) |
1650 |
| Compatible Propellers Size (inch) |
12×7/13×7 |
| Required ESC (A) |
70 |
| Volts |
11,1 ~ 18.5v |
| Shipment Weight |
0.188 kg |
