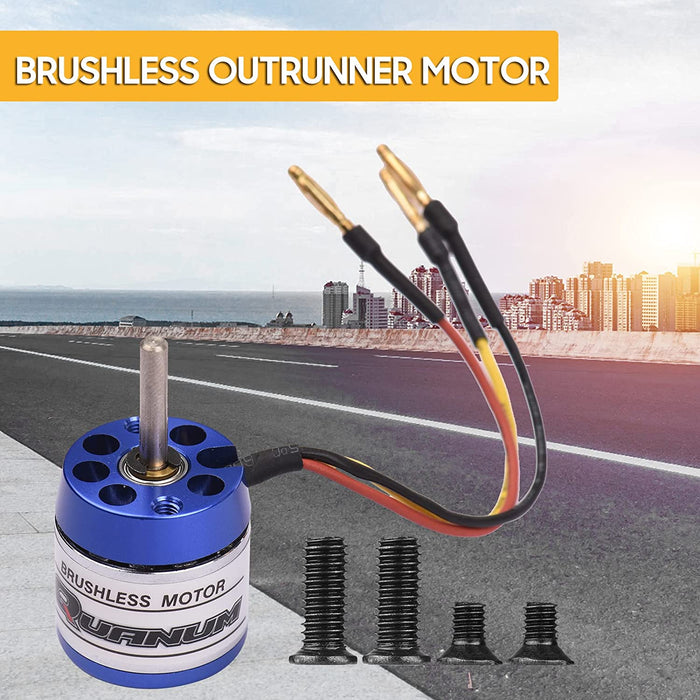

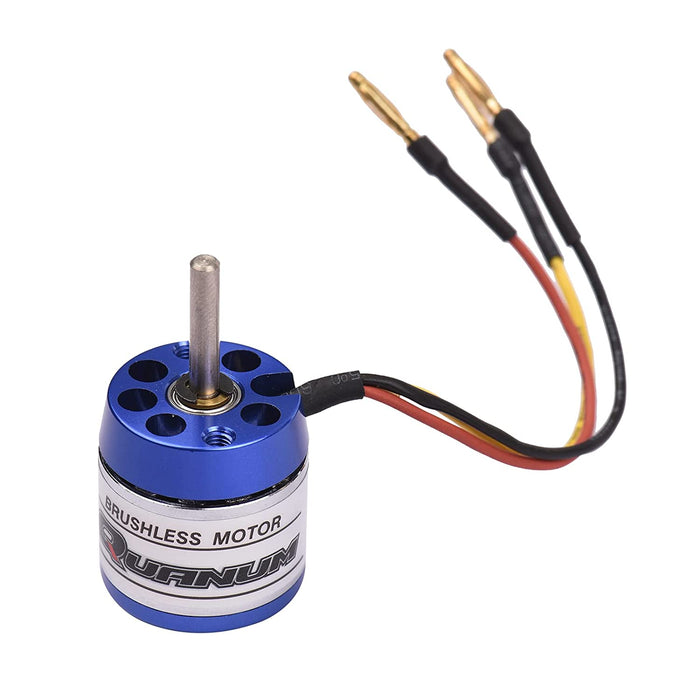

Dys D2225-15 1600Kv Bldc Motor

DYS D2225-15 1600KV BLDC Motor

1. Model: D2225-15
2. Voltage: 7.2v~11.1v / 2-3Li-Po
3. Kv: 1600 rpm/v
4. Shaft Diameter: 3mm
5. Max Watts: 90W

This DYS D2225-15 1600KV brushless outrunner motor specifically made to power Quadcopters and Multirotors. It is a 1000kV motor. It provides high performance, superpower, and brilliant efficiency. These motors are perfect for medium size quadcopters propellers.

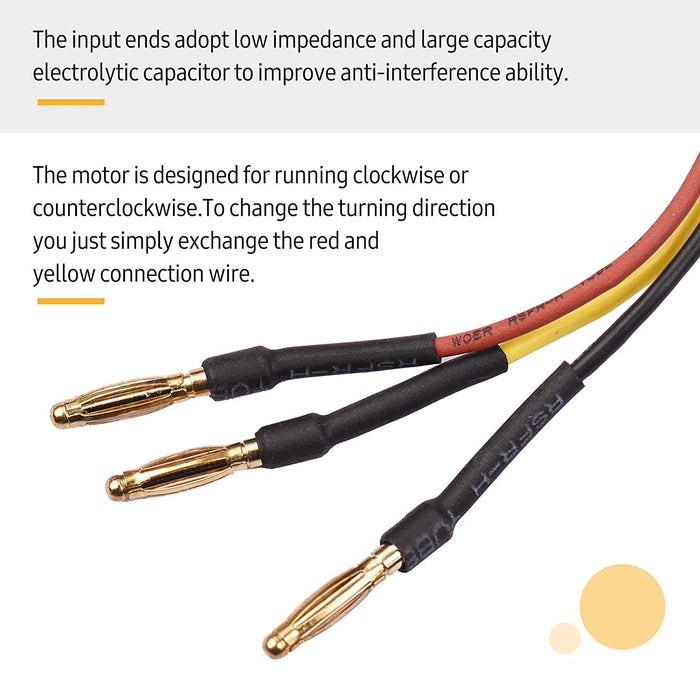

The motor comes with banana male connector attached which can be directly connected with 18A ESC without any soldering requirement

With a 3S LiPo battery, 18A ESC, and high efficiency 10″ propellers, these motors provide up to 440gms of thrust each. Using 4 of these motors on a quadcopter with orange propellers will give you a total of 3.84 kg thrust! Use this to build powerful and efficient quad-copters.

This is a low price and excellent quality Brushless Motor.  It comes with Bullet Connectors already soldered.

Applications:

1. Drones
2. Quad-copters
3. Multi-rotors
4. RC Airplanes
5. UAV

Features:

1. The steel design is capable of withstanding competitive conditions.
2. Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
3. Compact size.
4. Offers great performance and value for money.
5. Smooth throttle response for best RC experience.

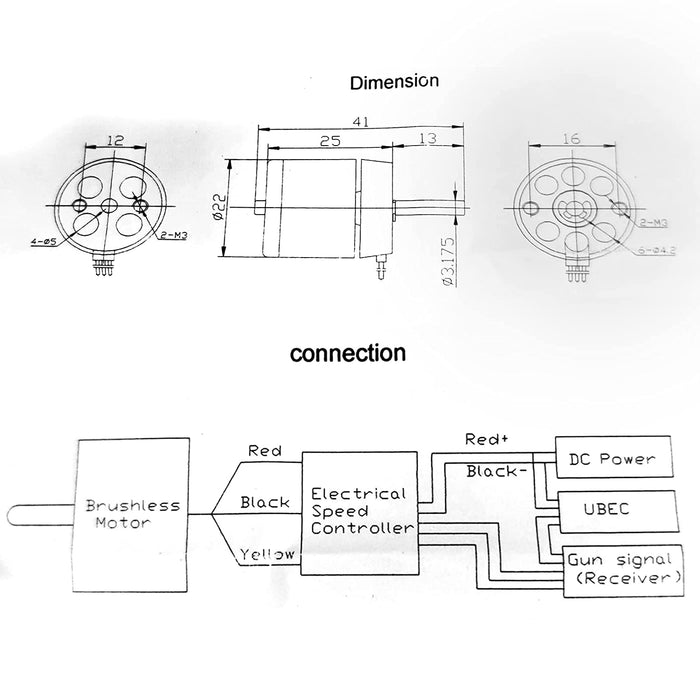

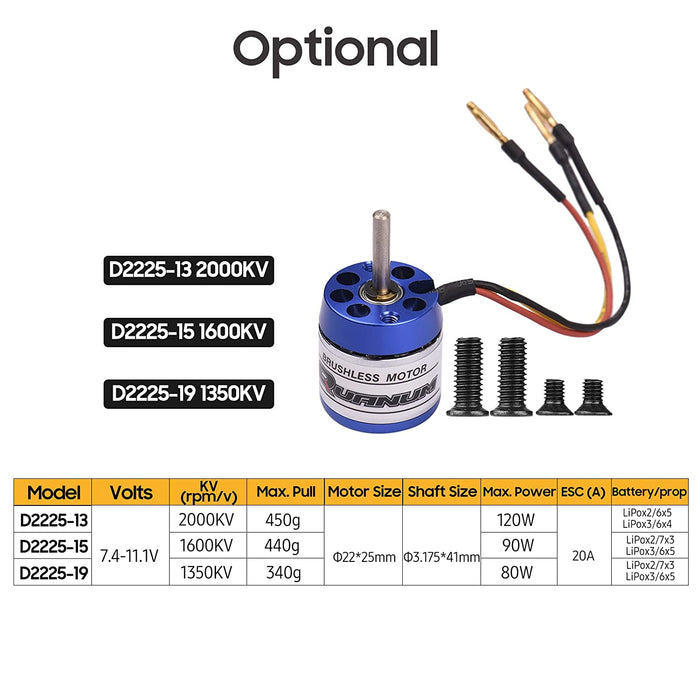

Specifications:

1. Model: D2225-15
2. Voltage: 7.2v~11.1v / 2-3Li-Po
3. Kv: 1600 rpm/v
4. Shaft size: 3.175X41mm
5. Max Watts: 90W
6. Max pull: 440g
7. ESC: 18A
8. Screw Size: M3
9. Prop: 8×4/7×3
10. Weight: 32g

Packages Includes:

1 x DYS D2225-15 1600KV BLDC Motor
