Dle Muffler 120Y32 Right 2 Hole

Dle Engines 120-Y32 Muffler Right 2-Hole DLE120

Product Description

DLE Engines Muffler Right 2-Hole: DLE-120, DLEG1332

This is the 2-Hole Right Muffler for the DLE-120cc Engine,.

FEATURES

Aluminum construction
Plastic muffler extension directs exhaust away from fuselage

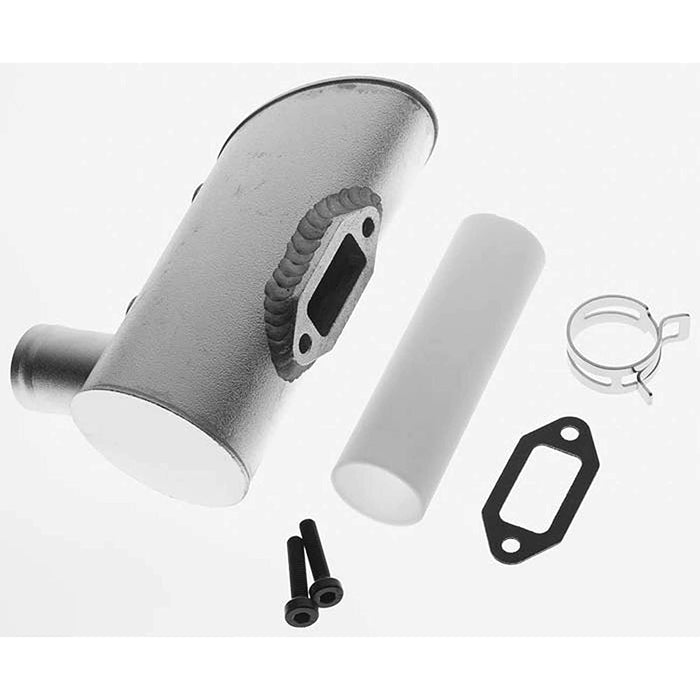

INCLUDES

2-Hole Right Muffler
Metal and Fiber Gasket
Two 4.5x22mm Socket Head Cap Screws
Muffler Extension with Compression Clamp

SPECIFICATIONS

Distance between Mounting Hole Centers: 1.65" (42mm)
Muffler Body Diameter: 2.15" (54mm)
Muffler Body Length: 5" (127mm)
Outlet Pipe Diameter: 0.98" (25mm)
Outlet Pipe Length: 1.2" (27.5mm)
Muffler Extension Length: 3.75" (95.2mm)
Muffler Extension Diameter: 1.10" (28mm)
