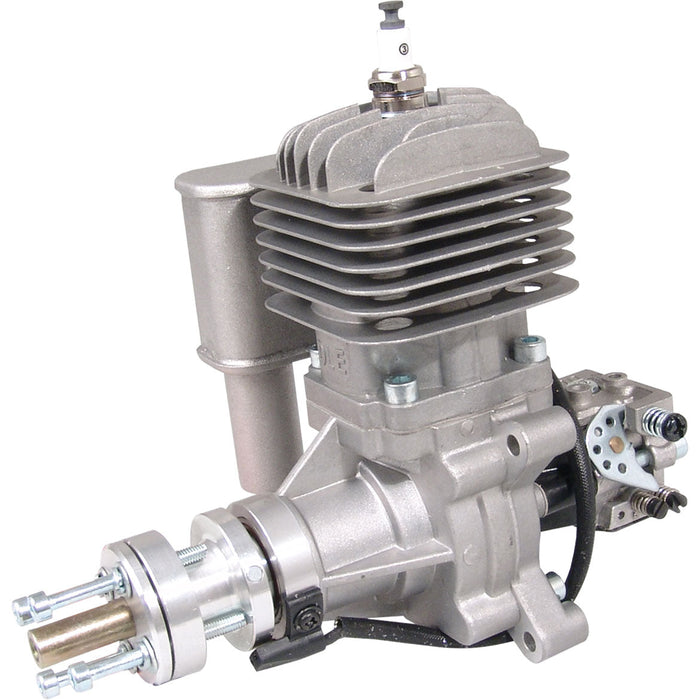

DLE 30cc Gasoline Powered Engine with Electronic Ignition

This is the DLE 30cc Gasoline Powered Engine with Electronic Ignition
and Rear Mounted Carburetor.

FEATURES:
Two sealed bearings on crankshaft-simple design for lighter weight
Aluminum alloy crankcase
Rear mounted pumper carburetor ensures easier installation and smooth
idling and dependable fuel flow during flights
Fully automatic electronic ignition

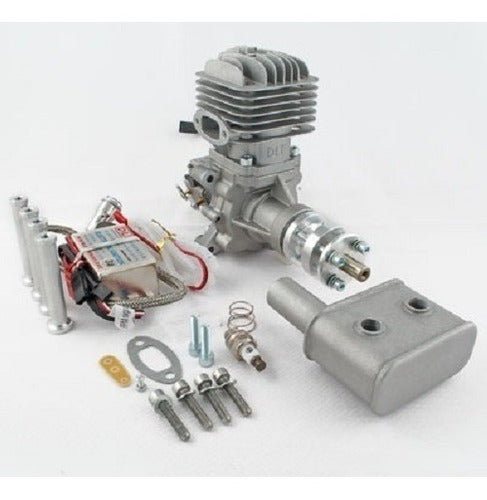

INCLUDES:
Engine, spark plug, four standoffs, ignition, muffler, muffler
gasket, two 5x20mm muffler bolts, four 5x60mm mounting bolts
instruction manual

REQUIREMENTS:
Gasoline with at least 87 octane rating
2-cycle oil, mix ratio for this engine is 30 parts gas to one part
oil and must be followed exactly for warranty consideration
and optimum performance
4.8 - 6V NiMH/NiCd, or 6.6V LiFe or 7.4V LiPo battery for ignition
(separate receiver style pack can be used) (LiPo & LiFe requires
voltage regulator)
Propeller, 1/8" gasoline tubing, and field equipment

SPECIFICATIONS:
Output Power: 3.7 HP at 8,500 RPM
Idle Speed: 1,600 RPM
RPM Range: 1,600-8,500
Static Thrust: 8.5kg Pulling Force/100 meters altitude
7.5kg Pulling Force/1,800 meters altitude
Displacement: 1.86cu in (30.5cc)
Bore: 1.42" (36mm)
Stroke: 1.18" (30mm)
Compression Ratio: 7.6:1
Crankshaft Thread: 5mm
Weight: Engine, 2lbs (910g)
Muffler, 2.1oz (60g)
Ignition, 4.2oz (120g)
