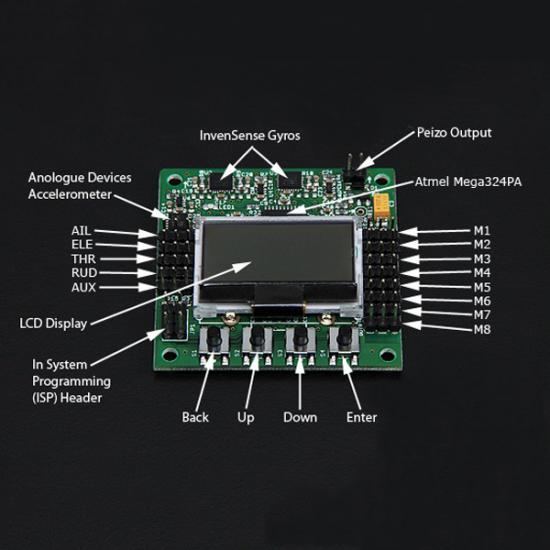

Control Board KK 2.1.5

KK2.1.5 LCD Flight Controll Board for FPV Racing Drone

The KK2.1.5 is next big evolution of the first generation KK flight control boards. The KK2.1.5 was engineered from the ground up to bring multi-rotor flight to everyone, not just the experts. The LCD screen and built in software makes install and setup easier than ever. A host of multi-rotor craft types are pre-installed, simply select your craft type, check motor layout/propeller direction, calibrate your ESCs and radio and you’re ready to go! All of which is done with easy to follow on screen prompts!

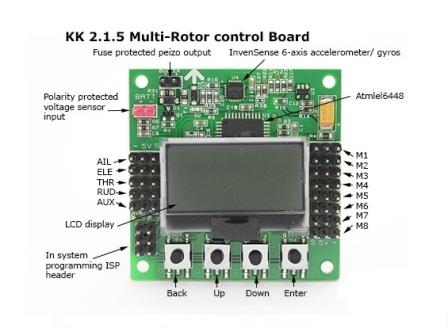

The KK2.1.5 added polarity protection to the voltage sense header and a fuse protected buzzer outputs, in case something is accidentally plugged in incorrectly. The voltage sense line has been updated for better accuracy. The board is clearly labeled and the voltage sense line color has been changed to red for easy identification, making installation and connections a snap.


Description:
Item number: KK2.1.5

Size: 51mm x 51mm x 12mm

Weight: 21 gram (Inc Piezo buzzer)

IC: Atmega

Gyro/Acc: InvenSense Inc.

Auto-level: Yes

Input Voltage: 4.8-6.0V

AVR interface: standard 6 pin

Signal from Receiver: 1520us (5 channels)

Signal to ESC: 1520us
