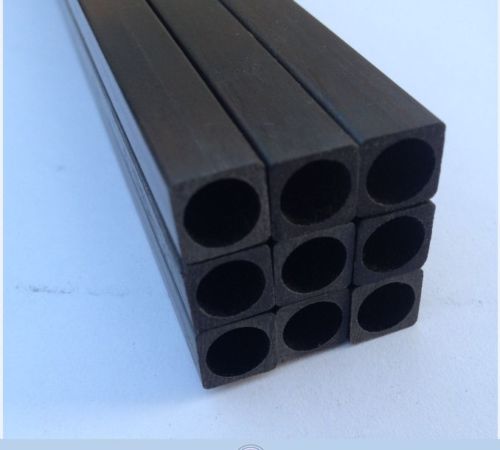

Carbon Fibre Square (Hollow) 3Mm X 1000Mm

Carbon Fibre Square (Hollow) 3Mm X 1000Mm

Product Description:

Carbon Fiber Tubes are manufactured by pulling continuous carbon fibers combined with a resin matrix through a heated steel forming die. This process is referred to as pultrusion and is used for producing continuous lengths of composite materials with constant cross-sections.

As the carbon fibers are saturated with the resin mixture and then pulled through a die, the hardening of the resin is initiated by the heat from the die and a rigid, cured tube is formed in the shape and size of the die. The majority of the fibers are running in the 0 degree direction, along the length of the tube, to produce an extremely stiff and lightweight tube with a very low coefficient of expansion. This type of construction offers a high stiffness to weight ratio tube with incredible linear strength, due to the orientation of the carbon fibers, and tight outer diameter (OD) tolerances.

Our Pultruded Carbon Fiber Tubes have a matte finish surface and are covered with a light glass scrim to improve structural integrity of the tube.

Uses Include

• Aerospace Spars & Beams
• UAV Housing Components
• Frames & Supports
• Structural Components
• Interior Design
• Automation Equipment
• Recreational Equipment

Package Includes:

• 1 x Pultruded Square Carbon Hollow Fiber Tube 10*3mm(OD) * 2mm(ID) * 1000mm(L)
