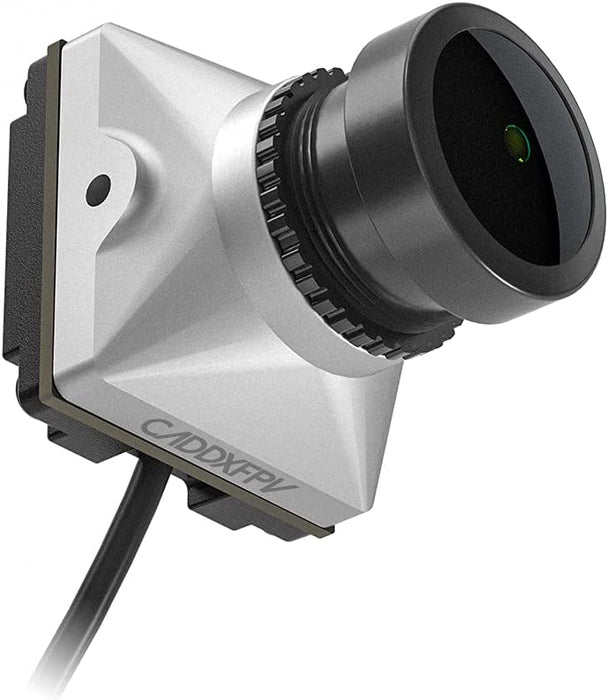

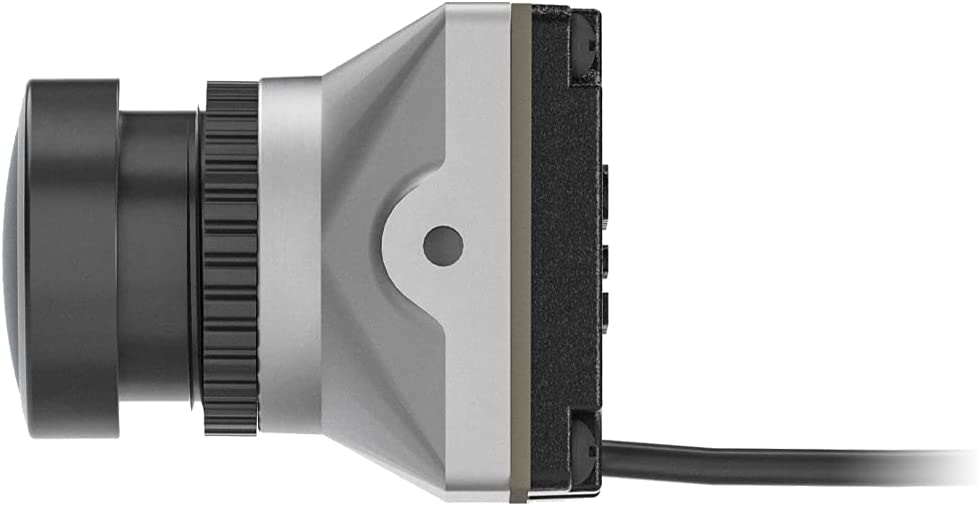

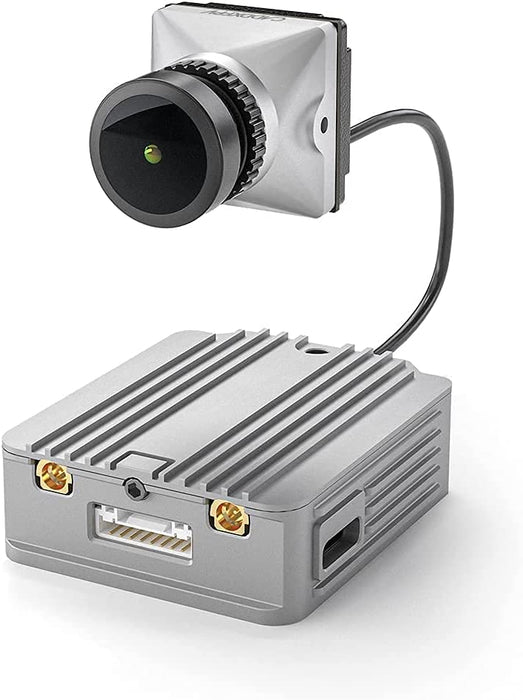

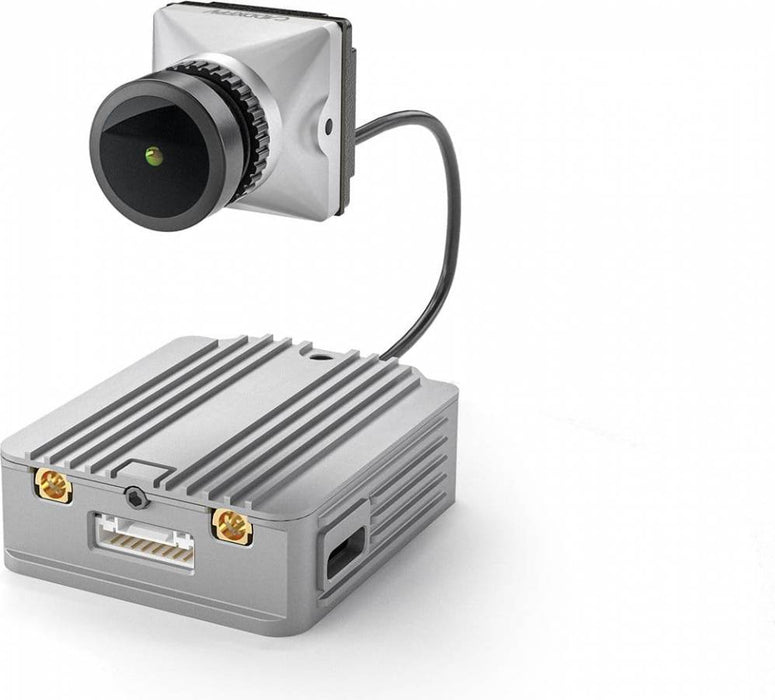

Caddx Polar Starlight/Air Unit Digital Hd Fpv System-Silver

CADDX POLAR STARLIGHT/AIR UNIT DIGITAL HD FPV SYSTEM-SILVER

The Caddx Polar Micro Air Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 720p 120fps image transmission, with a transmission range of up to 4km and a minimum end-to-end latency within 28 ms. The air unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly!

VIDEO: Caddx Polar Starlight Camera Review

Features

• Lightweight digital image transmission combination
• Stable and clear HD video
• 720p 120fps, 28ms/4km
• 8 channels, 8 drones

Specifications

• Transmitter Power(EIPP): FCC/SRRC: <30dBm; CE: <14dBm
• I/O Interface: USB-C,MMCX,3-in-1 port, micro SD card slot
• Operating Temperature Range: 0°to 40°C（32°to 104°F）
• Max.Transmission Distance: FCC/SRRC:4km;CE:0.7km
• Image Sensor: 1/1.8″ Inch 2.3Mega starlight sensor
• Polar air unit (Include camera) Weight: 42.6g
• Supported Flight Control System: BetaFlight
• Min.Latency(end-to-end): 720p 60fps<32ms
• Video Format: MP4(Video format:H.264;
• Operating Frequency: 5.725-5.850GHz
• Antenna Weight: 3.9g(MMCX elbow)
• FOV: 162°(D); 138°(H); 75°(V)
• Min. Illumination: 0.00003Lux
• Air Unit: 44×37.8×14.4mm
• Polar cam: 24×19×19mm
• Input Power: 7.4-17.6V
• Audio format: AAC-LC)
• Coaxial Cable: 110mm
• LENS: F/1.6 & 8Mega
• Aspect Ratio: 16:9
• Antenna: 81mm

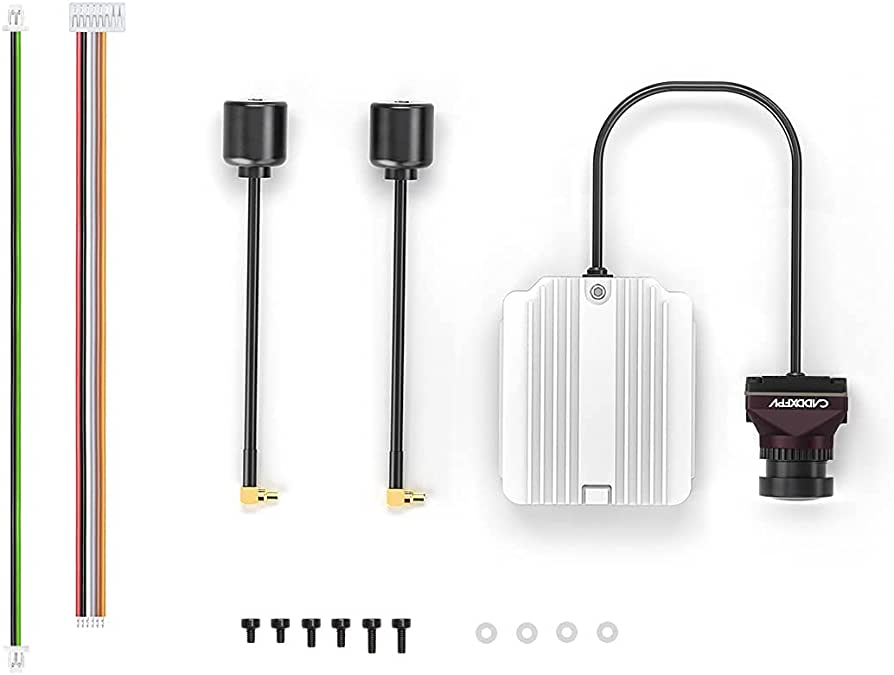

Package Includes:

1 x Caddx Air Unit Polar starlight Digital HD FPV system

6 x M2 Screws (3/4/5mm)

4 x Gasket Ring

1 x 3-in-1 Cable
