Caddx Air Unit Micro Vtx

Caddx DJI FPV Air Unit

1. Weight:
1. Air Unit: 41.6g
2. Antenna: 3.7g(MMCX Straight) 3.9g (MMCX Elbow) 6g (reverse polarity female SMA)
2. Closed Loop 4-in-1: Yes
3. Frequency Channels: 8
4. Shutter: Rolling Shutter
5. Sensor: 1/3.2″ CMOS
6. Effective Pixels: 4 M
7. Image: 720p/120fps
8. Video Format: MP4
9. Video: 1080p/60fps
10. Dimensions:
1. Air Unit: 44×37.8×14.4mm
2. Camera:20.7x19x19mm

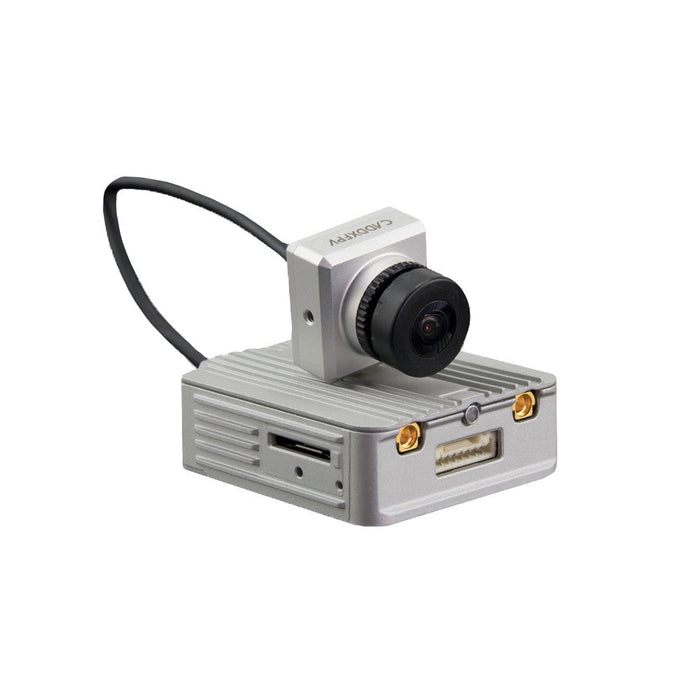

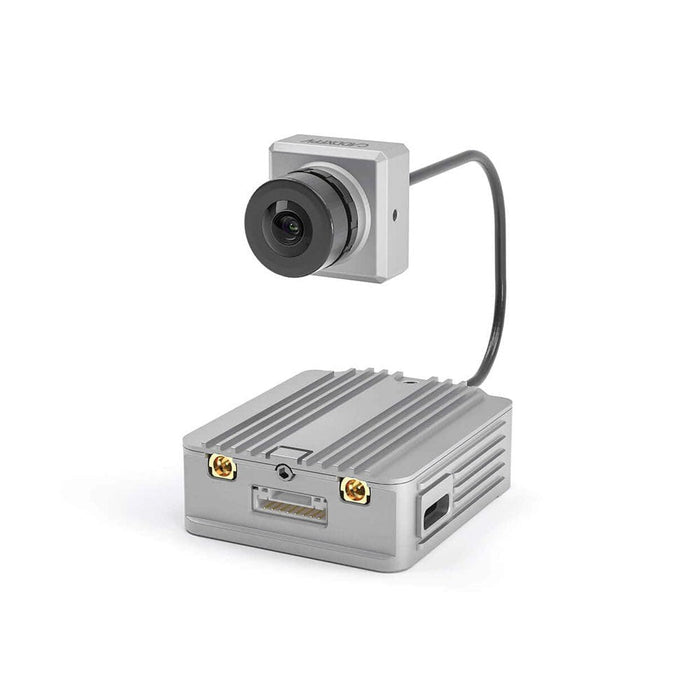

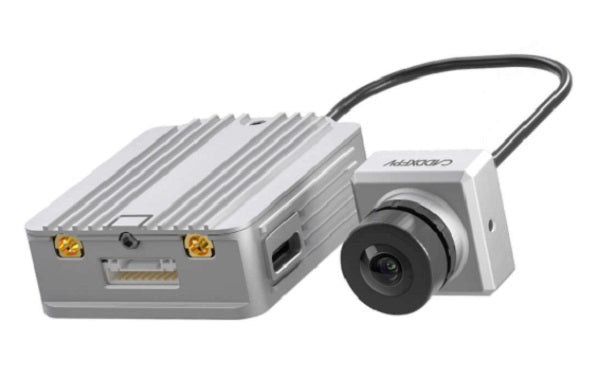

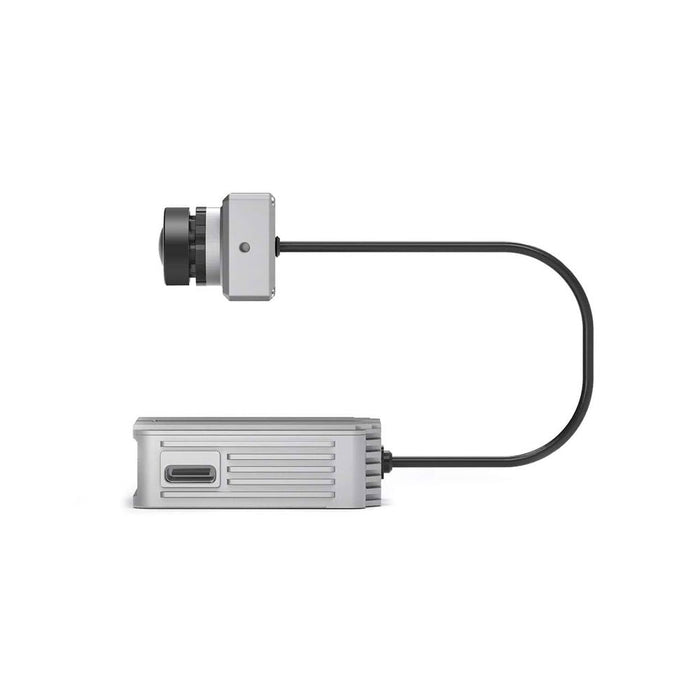

Caddx Air Unit is a combination of camera, video transmitter and antenna for digital HD system DJI FPV. The Air Unit provides 720p video transmission at 120 frames per second with a latency below 30ms. The Air Unit has two antennas, both of which are a receiver and a transmitter, which ensures wider signal coverage for reliable image transmission. Once unlocked, the unit supports power up to 1200mW. The unit can record video in flight at 1080p / 60fps.

The Air Unit is compatible with DJI FPV V1 and V2 goggles and a V1 transmitters.

Features:

1. 4-in1 Closed Loop control for the DJI FPV RC
2. Embedded remote controller receiver
3. 8 Channels for up to 8 Drones
4. Multi-antenna technology
5. 1080p Aerial Footage
6. Micro-Sized Camera (19x19mm)

Specification:

1. Operating Temperature: 32 to 104 F (0 to 40 C)Input Power: 7.4-17.6V
2. Transmitter Power: FCC/SRRC: <30dBm CE: <14dBm
3. I/O Interface: USB-C, MMCX, 3-in1 Port, MicroSD
4. Output Power: 25mW3200mW/500mW/700mW
5. Video Transmission: 28ms Low Latency
6. Flight Control System: BetaFlight
7. Max Transmission Range: 4km
8. Coaxial Cable Length: 100mm
9. FOV: 150(D); 122(H); 93(V)
10. Goggle Compatibility: DJI
11. Video: 1080p/60fps
12. Lens: 2.1mm, F/21

Package Includes :

1 x Caddx DJI FPV Air Unit
