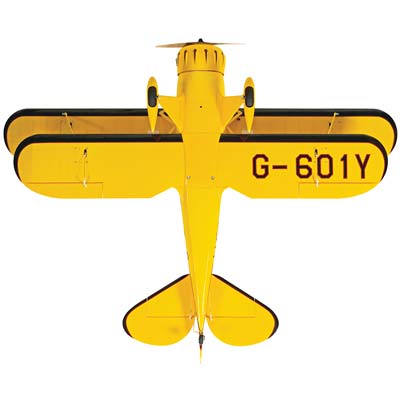

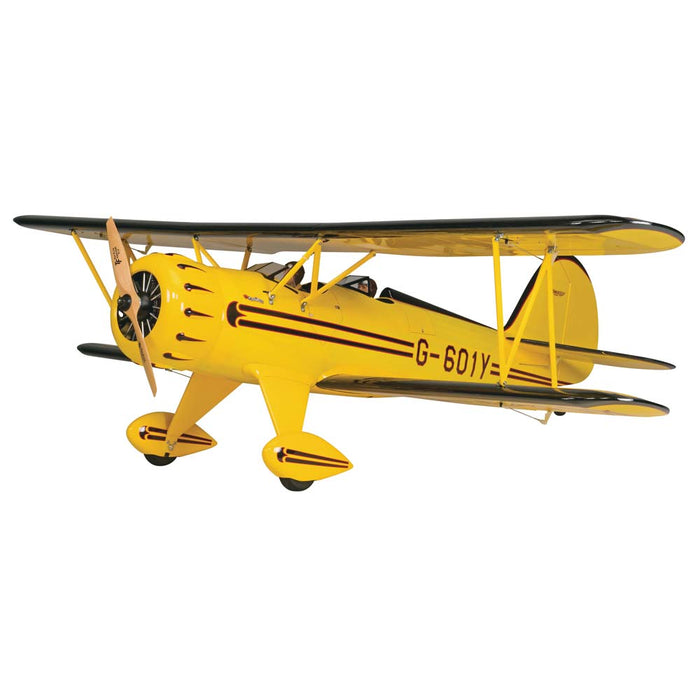

BI PLANE

BIPLANE RC PLANE

Construction: Built-up balsa and ply
Wings: One-piece with two each plywood and aluminum joiners
Aileron Control: Four servo (two per wing)
Engine Mount: Two-piece composite construction
Fuel Tank: Approximately 24oz (720cc)
Landing Gear: Preformed 0.16" (4mm) thick painted aluminum with
painted fiberglass fairings and wheel pants
Wheels: Three foam, main 3.5" (90mm) diameter, tail wheel, 1.5"
(38.5mm) diameter
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship at
the date of purchase. This warranty does not cover component parts
damaged by use or modification.

Pre-built wing, fuselage and tail assemblies, landing gear, wheels
hardware packages, instruction manual, fuel tank, decals and
dummy plastic engine detail

Radio: At least 4-channels
Servos: Seven
Servo Extensions: Two 16" (405mm)
One 12" (300mm)
One 30" (760mm)
Y Harness: One 21" (533mm)
One 6" (152mm) (two if not using computer radio)
Switch & Charge Jack Mounting Set
Engine: .91 cu in (14.9 cc) 2-stroke OR
1.20 cu in (19.7 cc) 4-stroke OR
1.5 - 1.8 cu in (25 - 30 cc) gasoline engine
Propeller, building & field equipment

Wing Span: 72" (1830mm)
Wing Area: 1384 sq in (89.2 sq dm)
Weight: 12.75 - 13.75 lb (5.78 - 6.23 kg)
Wing Loading: 21 - 21oz/sq ft (64 - 70g/sq dm)
Length: 56.5" (1435mm)
Center of Gravity (CG): 5.25" (133mm) back from the leading edge of
the top wing
