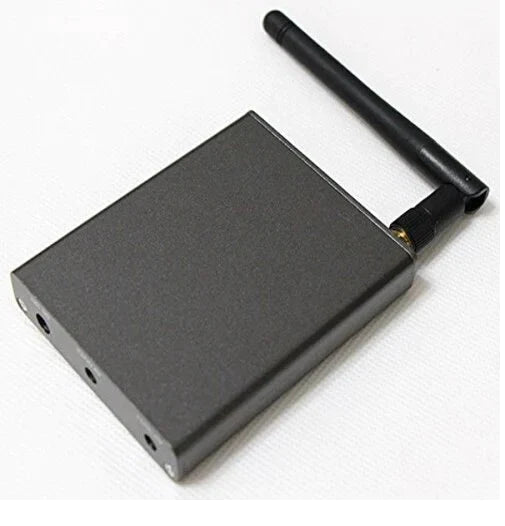

AVIONIC FPV RECEIVER (32CHANNELS)

DESCRIPTION :

Avionic FPV receiver (32channels) is an Audio & AV Receiver which works between the frequencies of 5645 to 5945MHz ISM. This product selects high integrated chip which matches perfectly with the Avionic FPV transmitters.

SPECIFICATION :

• Compact size: 67*55*15(mm)
  ● A strong transmitting power- the use of large scale integrated circuits           ensures the high reliability
  ● 32 working Channels, DIP Switch Setting
  ● Receiving Sensitivity：90dBm
  ●  frequency control: integrated frequency phase locked loop.
  ● The Dual AV output: direct output analog audio and video signals
  ●  Supply Voltage: 7.4-16V
  ●  Antenna connector: SMA
  ●  Size: 67*55*13mm; Aluminum Case.
