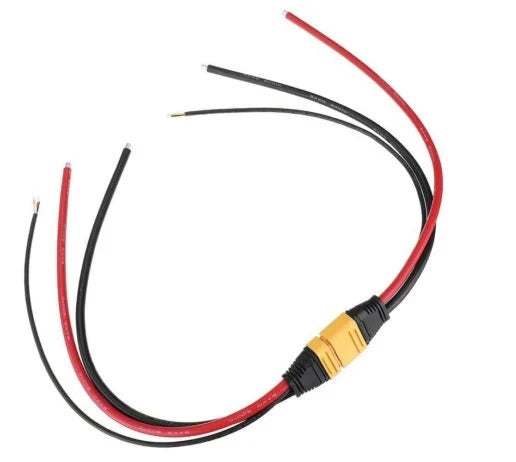

Amass As150U With Wire 0.35M (Male & Female)

AMASS AS150U WITH WIRE 0.35M (MALE & FEMALE)

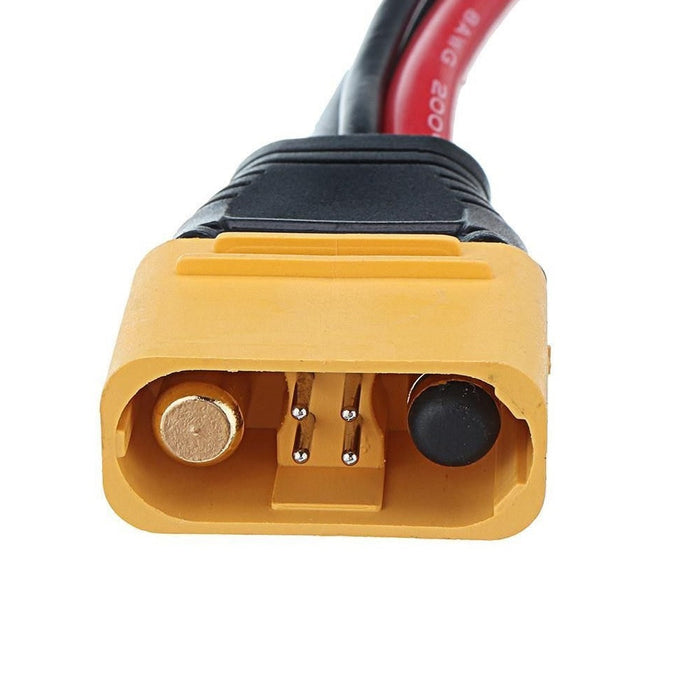

1. Connector: AS150U

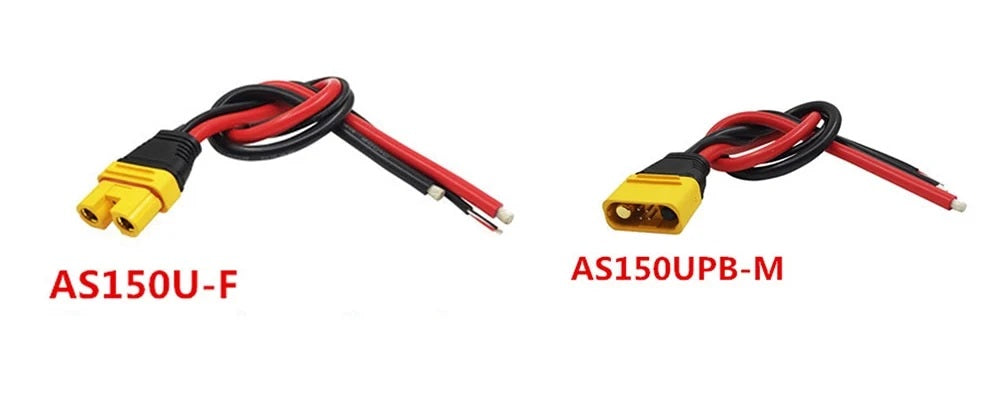

2. Gender: Male & FEMALE
3. Instantaneous current: 140A
4. Current Rating: 70A
5. Contact resistance: 0.40mΩ
6. Rated voltage: DC 500V
7. Flame retardant rating: UL94 V0

Features:

1. Anti-reverse insertion function, safe and reliable
2. Adaptable, anti-corrosion, anti-penetration
3. Anti-shedding design
4. High-efficiency welding, eliminate welding

Specifications:

1. Product model: AS150U with short silicone protective cover
2. Recommended Applications: Lithium Battery / Controller / Charger
3. Product color: black/yellow
4. Metal material: copper plated
5. Instantaneous current: 140A
6. Current Rating: 70A
7. Contact resistance: 0.40mΩ
8. Rated voltage: DC 500V
9. Flame retardant rating: UL94 V0

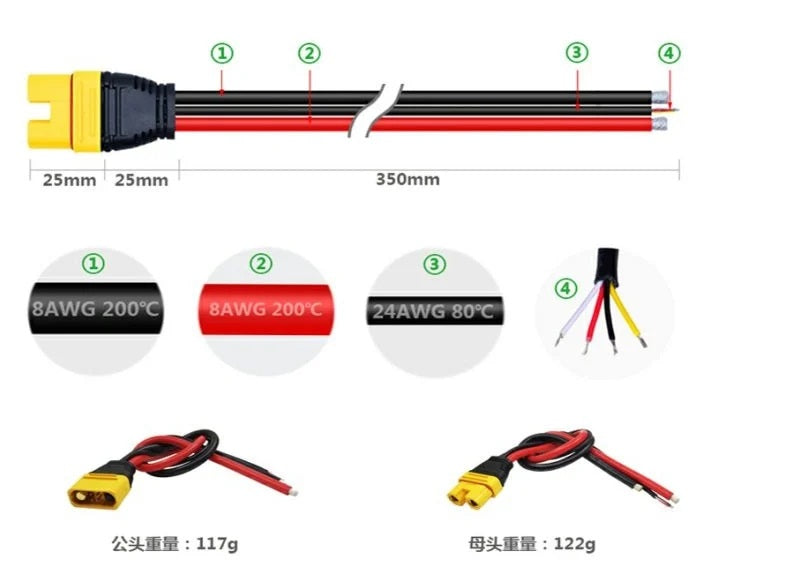

10. Recommended wire: 8AWG/28AWG
11. Insulation material: PA66
12. Operating temperature: -20°C to 120°C
13. Weight:206g
14. Recommended usage: 1000 TIMES

Package Includes:

1 x Amass AS150U-Male & Female connector with Wire 0.35m
