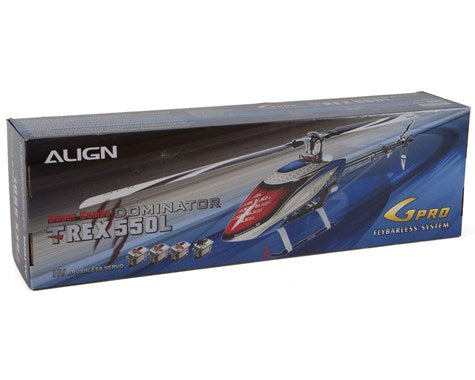

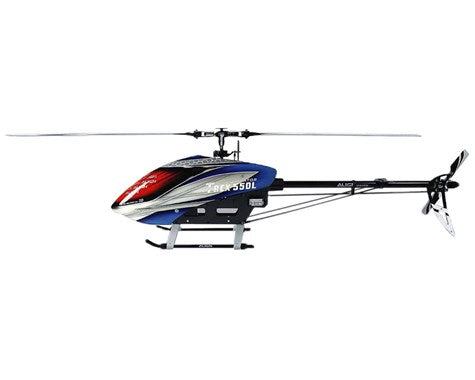

Align T-REX 550L Helicopter RTF

Features:

• T-Rex 550L Dominator
  • Equipped with the low CG DFC rotor head, for exhilarating 3D performance and unimaginable flight speed.
  • Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts similar to that of T-Rex 700L, for simplified servo installation and clean aesthetic.
  • Updated swash anti-rotation guide with embedded anti-wear material, effectively minimize the wear between swashplate long ball and guide.
  • Innovative sliding battery tray rails imbedded into the 3K side frames, with patented spring loaded latching mechanism, allowing for quick battery access as well as battery protection.
  • Carbon side frame plates utilized composite material integration technology, adding battery mounting rails. The clever use of open spaces within the frame resulting in a structure that is both rigid and aesthetically pleasing.
  • High quality tail gearbox design, combined with dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.
• Gpro Controller
  • CPU processing 20 times faster than previous generation for precise and agile response.
  • Fresh software process structure improves system compensation and keeps up-to-date flying performance.
  • Utilizes latest iOS and Android APP that can be used to easily and directly adjust settings through mobile phone while flying outdoors.
  • Human oriented interface allows convenient and rapid setup and installation.
  • Superior flying characteristic remain the same flying control among T-REX 250~800 helicopters.
  • Supports 90/120/135/140 CCPM swashplates
  • Spektrum and JR Satellite receivers support (Replaces original factory receiver)
  • Futaba S.BUS/JR X.BUS system support
  • Supports Wide/Narrow Bandwidth Digital and brushless servos
  • Compatible with 2 to 5 blades rotor heads
  • Built in governor function
  • Compatible with 1024/2048 resolution Spektrum receivers
  • Field setup without the use of a PC
  • Support up to 6 servos
  • Automatic servo type recognization

Specifications:

• 550L Dominator:
  • Length: 1070mm
  • Height:337mm
  • Width: 210mm
  • Main Blade Length:550mm
  • Main Rotor Diameter:1248mm
  • Tail Rotor Diameter:254mm
  • Motor Drive Gear:16T
  • Main Drive Gear:112T
  • Autorotation Tail Drive Gear:131T
  • Tail Drive Gear:34T
  • Drive Gear Ratio:1:7:3.85
  • Weight (w/o power system):2790g
• Gpro Flybarless System
  • Operating Voltage Range:DC 3.5V~8.4V
  • Operating Current Consumption:<80mA @4.8V
  • X and Y axis Operating Angle Range: -300~+300 degree
  • Z axis Operating Angle Range:-600~+600 degree
  • Sensor Resolution:12bit
  • Maximum Working Voltage:5V
  • Operating Temperature:-20~60 degree
  • Operating Humidity:0%~95%
  • Size:5x25.2x15.6mm
  • Weight:11g

Includes:

• (1) T-REX 550L DOMINATOR Kit
• (1) 550 Carbon Fiber Blade set
• (1) 90mm Carbon Fiber Tail Blade set
• (1) 730MX Brushless Motor(850KV)
• (3) BL815H High Voltage Brushless servo
• (1) BL855H High Voltage Brushless servo
• (1) Castle Talon 90 Brushless ESC
• (1) Gpro Flybarless System

Needed to Complete:

• Transmitter (6-channel or more,helicopter system)
• Receiver (6-channel or more)
• Pitch gauge or Digital Pitch Gauge
• 6S Li-Po 2600~5200mAh battery & Charger
