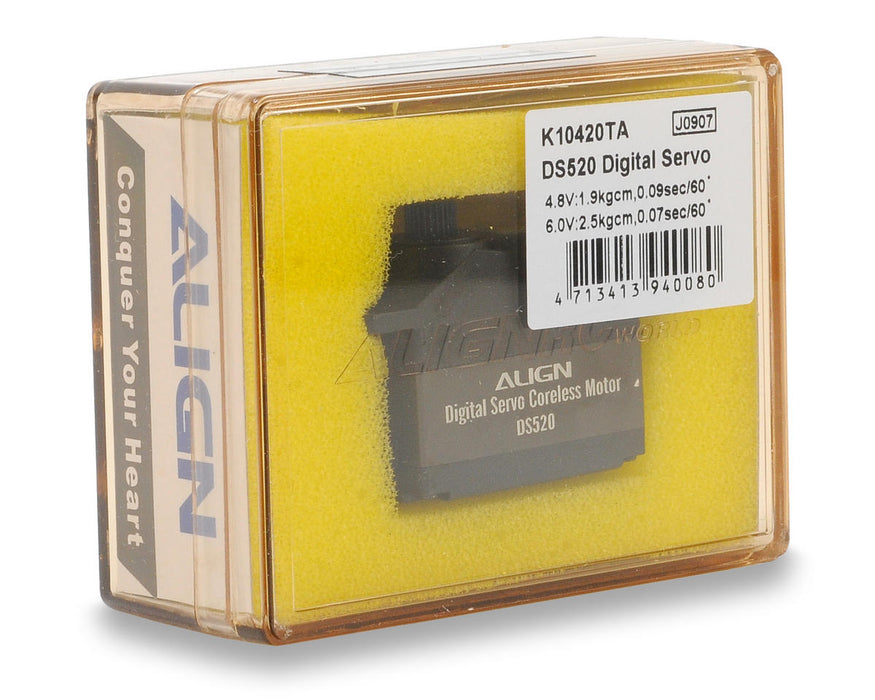

ALIGN DS520 DIGITAL SERVO-K10420TA-C906

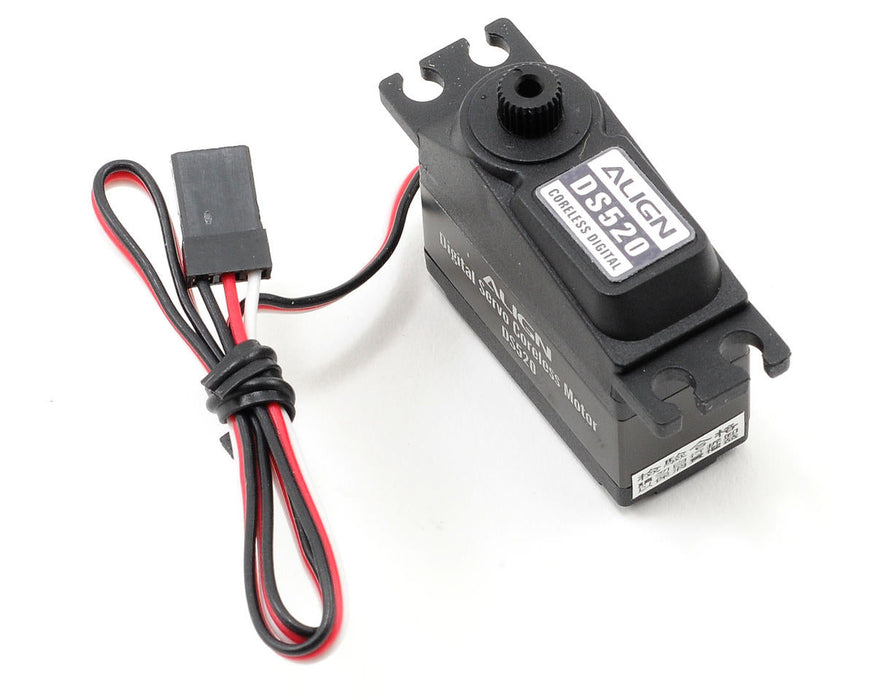

This is the Align DS520 Digital Servo.

Features:

• Coreless Motor Design for fast speed, high efficiency, and low power consumption.
• 10 Bits signal resolution for smooth movements.
• Response time of 0.07s/60°.
• High strength composite alloy gears with high precision and durable structure characteristics.
• Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
• Supports digital & analog control signal.
• Powerful and precise servo suitable for T-Rex 500 CCPM cyclic and rudder servo use.

Specifications:
Stall torque: 1.9kg.cm (4.8V) / 2.5kg.cm (6.0V)
Motion speed: 0.09sec/60°(4.8V) / 0.07sec/60°(6.0V)
Rating voltage: DC 4.8-6V
Temperature range: -20°C~+60°C
Dimension: 35x15x29.2mm
Weight: 25.9g

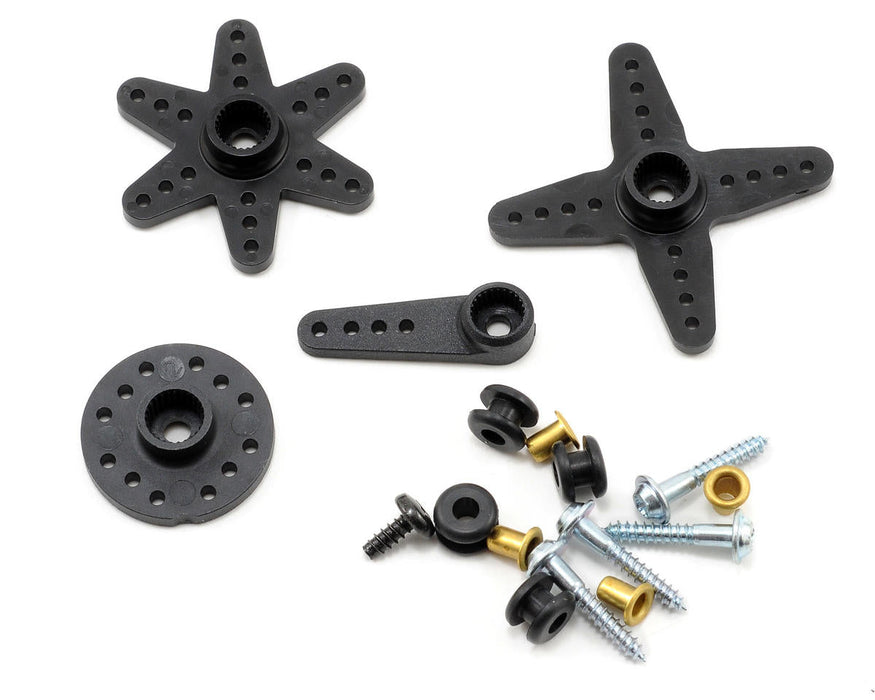

Includes:

• (3) Servo rudder piece
• (1) Set screw
• (4) Rubber damper
• (4) Brass grommet
• (4) Tapping screw for servo
• (1) DS5 Servo horn
