Align Digital Pitch Gauge Ap800 Het80001T

ALIGN DIGITAL PITCH GAUGE AP800 HET80001T

Introduction:

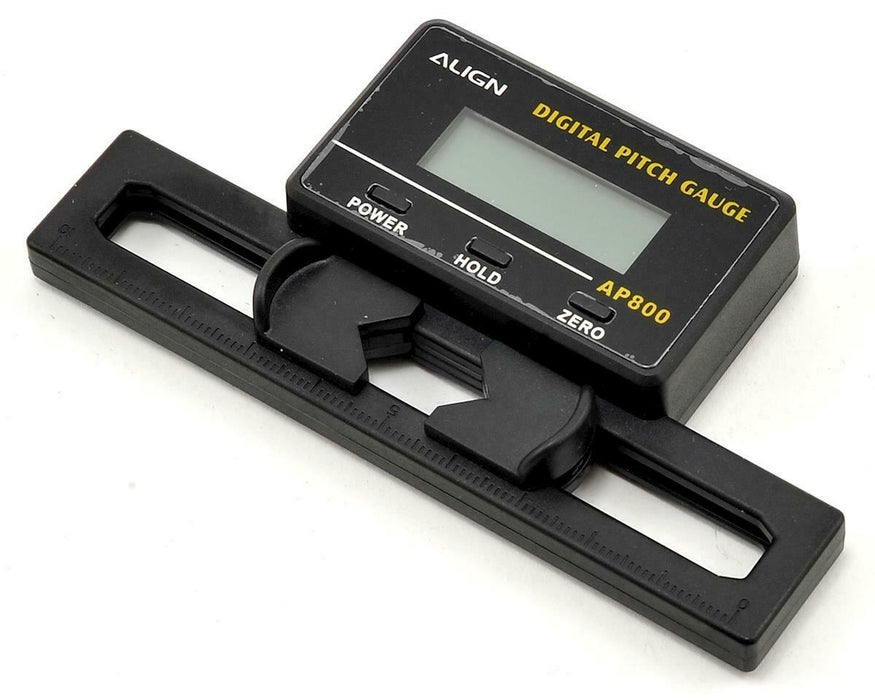

Developed by the R&D team in Align, the new AP800 digital pitch gauge is suitable for flybar and flybarless helicopters. Auto-detecting Horizontal level , with result displayed through high contrast LCD screen, providing a simple and precise way of measuring pitch angle.

Fatures:
●Auto-detecting Horizontal level.
●Uses backlighting LCD monitor.
●Zero and Lock function.
●Detectable pitch range: -90° ~ 90°.
●Automatic screen rotation.
●Suitable for 200~800mm main blades.
●Build-in energy saving function. Power shuts down after 3 mins without any movement.

Specifications:

• Body Dimension：108x53.9x16mm
  ●Suitable blade width：20mm~74mm
  ●Detectable pitch range: ±90°
  ●Resolution: 0.1°
  ●Battery: 2X CR 2032 Lithium
  ●Weight:38g (including battery)
