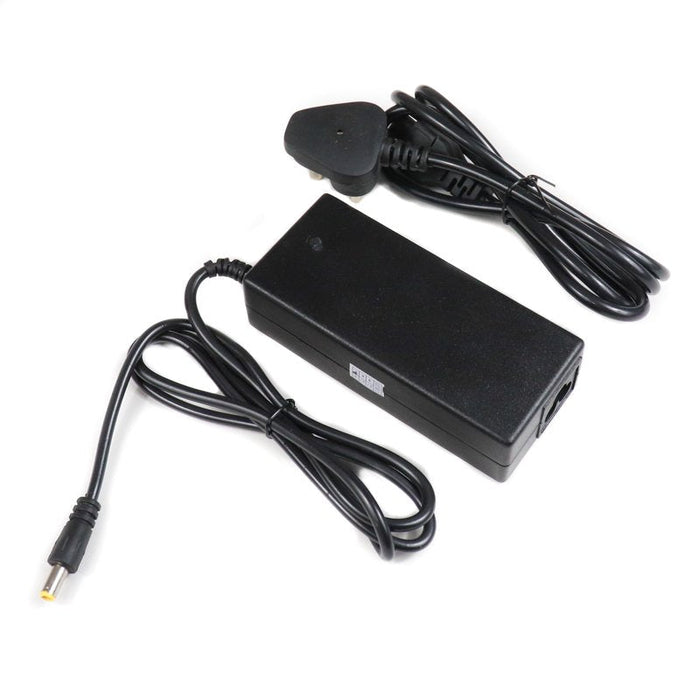

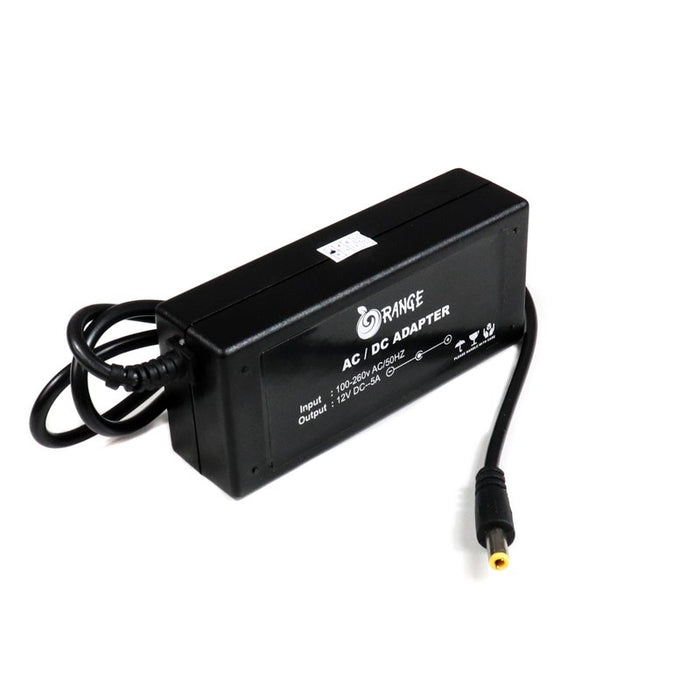

Power Adapter Ac100-240V To Dc 12V 5A 60W
Description:
This high-Quality DC 5A 12V 60W Output Power Adapter with AC 100-240V Input range. It is widely used for LED Driver and as a Switched-mode power supply (SMPS) for various devices which required 12V with high current up to 5A. This is the advanced power supply and better than conventional ones. If you want low losses and stable output also you don’t want to make a rectifier, so go for this Orange SMPS.
, so we can assure the quality of the adapter after testing this product under various scenarios at our lab and hence we are providing 6 months of manufacturing defect warranty.
This is a high-quality AC to DC Switching Power Adapter which gives a clean regulated 12 VDC output at up to 5A. These adapter work with 240/220VAC input, allowing them to work with household supply. The barrel plug attached to these wall adapters is centre positive with 2.1mm diameter.
AC 100~240V to DC 12V 5A Power Adapter/Buck Converter/Switching Power Supply/Transformer/Charger, Applied to the Charging Equipment/Small table lamp/Router/TV Box/Mini TV etc/tablet PC/ 2.5-inch mobile hard disk/mobile DVD/Power Tools etc.
Features :
- PWM design, make sure the stability and high efficiency of power supply.
- Anti-jamming, passed EMC test, wave less than 20MV.
- Efficiency above 80%, exotherm less than 25 degree
- Function: with overvoltage protection, short-circuit protection, overload protection
- Non-waterproof
- Constant voltage output, assume stable power supply for LED lightings to reach long lifetime and reduce led to light decay.
Package Includes :
1 x AC 100-240V to DC 12V 5A 60W Power Adapter
Specification:
| Model |
12V 5A |
| Output Plug Size (mm) |
5.5mm (Outer Dia) x 2.5mm(Inner Dia.) |
| Input Voltage (V AC) |
100 ~ 240 |
| Output Voltage(V) |
12 |
| Max. Output Current (A) |
5 |
| Output Power(Watt) |
60 |
| Ripple wave (mVp-p) |
<1% |
| Linear Modulate |
0.5%max |
| Temperature Coefficient |
0.02% |
| Start Time(s) |
1 |
| Guard Time(ms) |
20 |
| Override Protection |
115%-150%kvA |
| Overvoltage Protection |
30%-150% VAC |
| Short-Circuit Protection |
1 Channel Automatic Recovery |
| Operating Temperature (°C) |
0 to 40 |
| Store Temperature (°C) |
-20 – +85 |
| Output Adapter Type (mm) |
5.5 x 2.5 |
| Power Cord Length (Meter) |
1.2 |
| Dimensions in mm (LxWxH) |
110x50x30 |
| Weight (gm) |
190 |
| Overall length with Cable |
2.3 Meter |
| Shipment Weight |
0.295 kg |
| Shipment Dimensions |
12 × 6 × 4 cm |
