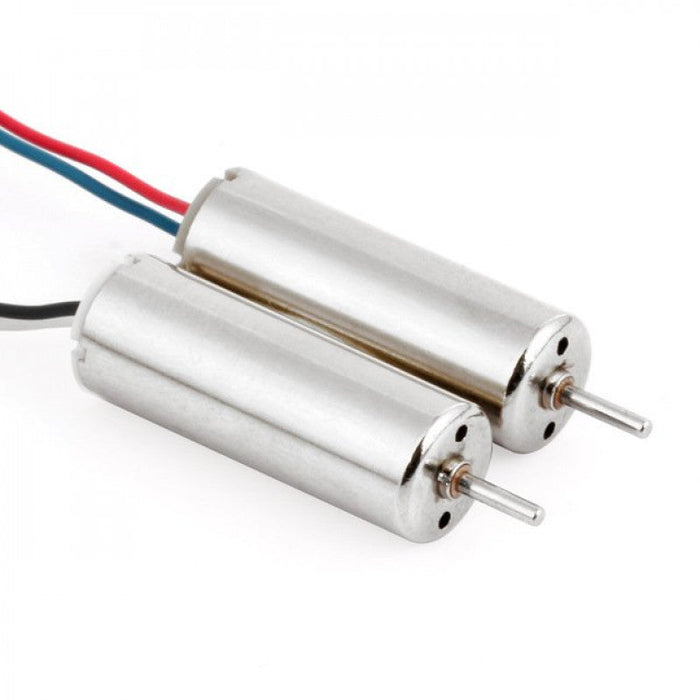

615 Magnetic Micro Coreless Motor for Micro Quadcopters – 2xCW & 2xCCW
615 Magnetic Micro Coreless Motor for Micro Quadcopters – 2xCW & 2xCCW
Description
if you are new in multirotor/drone hobby area and want to try out some basic multirotor designs so as to enhance your basic knowledge about multirotors!!! Don’t wait and get this combo of 615 Magnetic Micro Coreless Motor for Micro Quadcopters – 2xCW & 2xCCW.
These lightweight brushed DC coreless motors are the best choice for your small drone, offering you an excellent affordable price when compared with costly BLDC motors.
This 615 Magnetic Micro Coreless Motor is very compact and lightweight DC motor nicely crafted for perfectly matching with your small 100mm like multirotor frames.
They are rated at 60000 RPM which is more than needed to lift and push your drone to the target. These are less noisy with low resistance. The only drawback of using coreless is the amount of torque they provide, as they are High Speed and Low Torque motors.
Instruction :

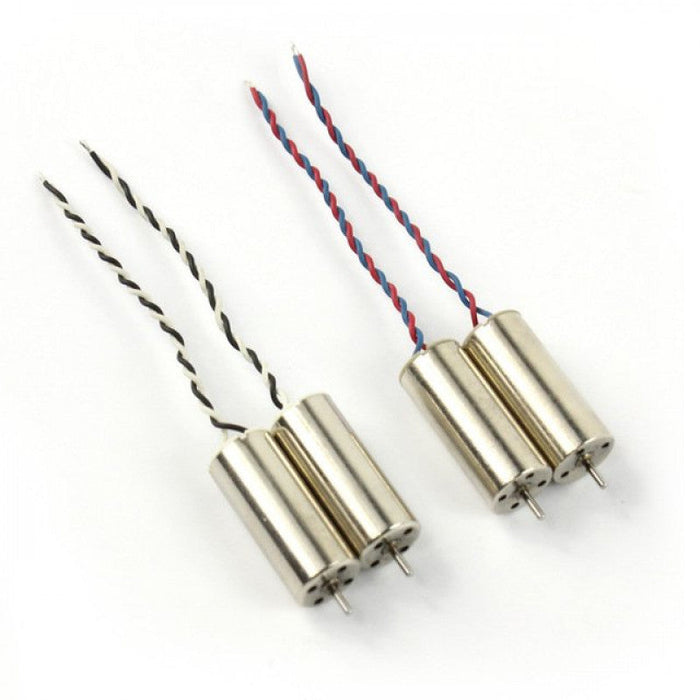

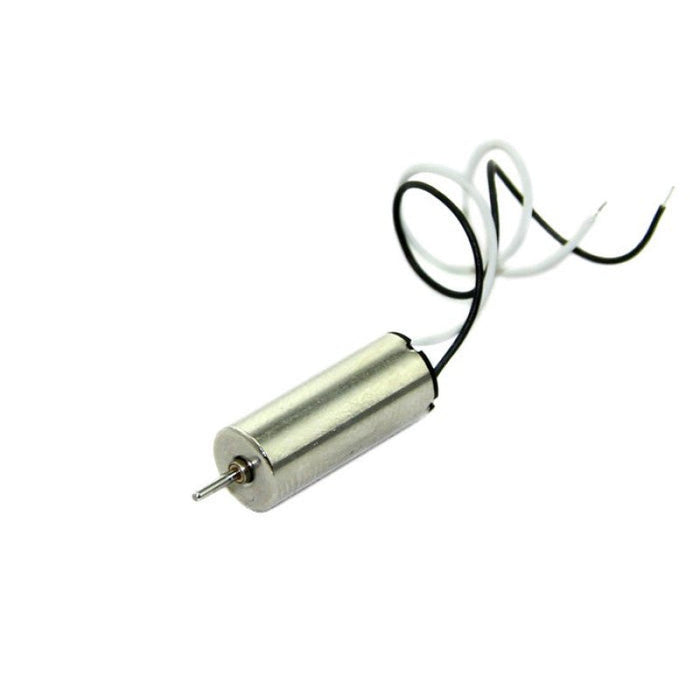

615 Magnetic Micro Coreless Motor with Red and the Blue wire is CW rotation motor & Black and the White wire is CCW rotation motor.
Features :
- 615 Coreless motor is High Speed and Low Torque motor.
- Less noisy operation.
- Offers low resistance.
- They are equipped with high-quality magnets.
- This coreless motor supports 1S battery.
Package Includes :

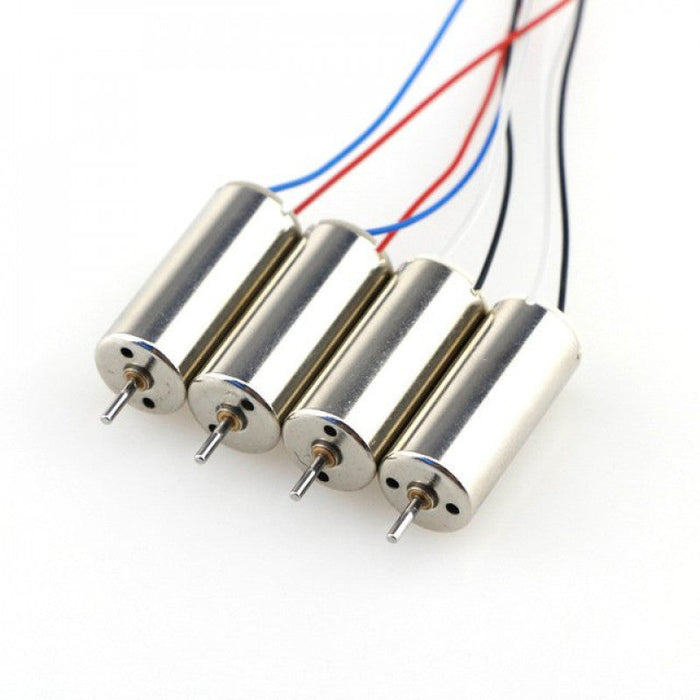

2 x 615 Magnetic Micro Coreless Motor (CW)
2 x 615 Magnetic Micro Coreless Motor (CCW)
Specification:
| Model |
615 |
| Rated Speed (RPM) |
60000 |
| Rated Voltage(V) |
3.7 |
| Rated RPM |
41000 |
| Rated Load Current (mA) |
580 |
| Operating Temperature (°C) |
-20 to 60 |
| Shaft Diameter (mm) |
0.8 |
| Compatible Propellers Size (inch) |
2 ~ 2.5 |
| Motor Color |
Silver |
| Motor Material |
Metal |
| Motor Diameter(mm) |
6 |
| Motor Length (mm) |
15 |
| Cable Length (cm) |
6 |
| Shipment Weight |
0.06 kg |
| Shipment Dimensions |
15 × 10 × 6 cm |
