6 Wheel Chassis with Motor-Gearbox and Steering Servo (Scale 1:18)

Product information

Technical Details

Product description

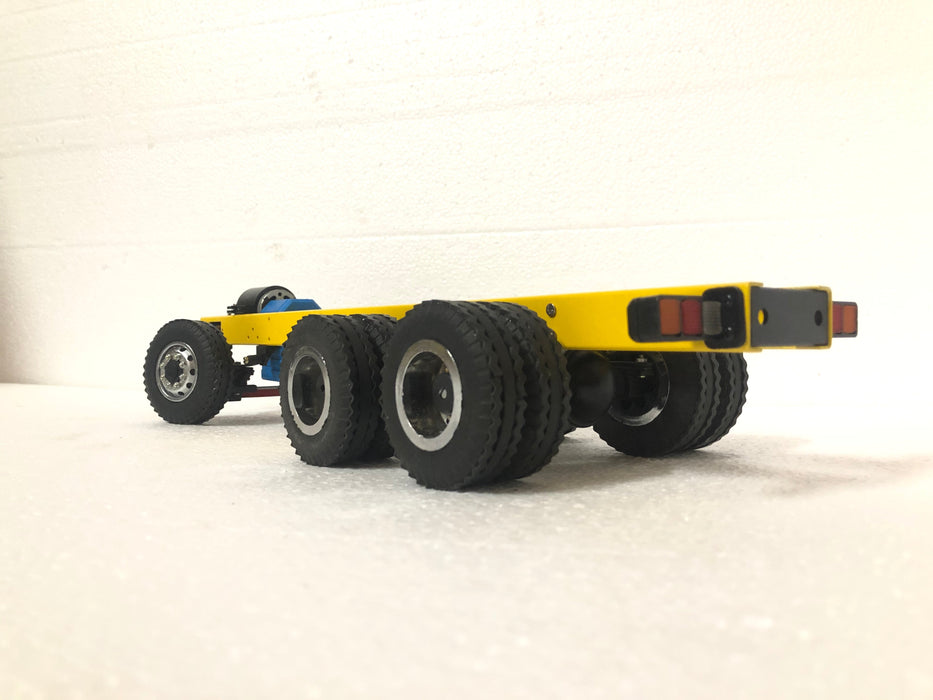

6 wheel bus chassis. Scale 1:18.

Note: This product is shipped disassembled. You would be provided with guidelines to assemble the Chassis. The order does not contain remote control. The Chassis can be connect to radio control and operated.

Dimensions : Width wheel bolt to wheel bolt 14.3 cms. Length 60 cms. Wheel diameter 6.3cms. Can carry maximum weight of 2 kgs.

Each order consists of:

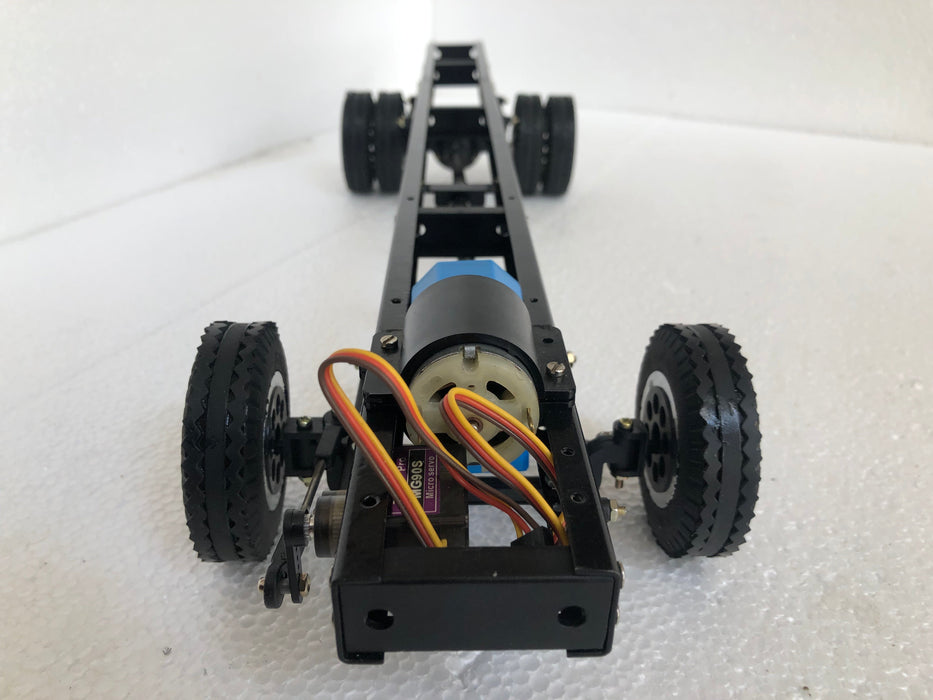

• 1 Ladder chassis frame make of mild steel.
• 6 wheel assemblies.
• 1 front axle with leaf spring suspension
• 1 rear axle simple crown pinion mechanism with leaf spring suspension.
• 1 set of propeller shafts and center joint.
• 1 metal gear steering servo.
• 1 set of motor and gearbox.
• Motor specifications: 25,000 RPM, 12 volt DC motor.

Materials:

•  Chassis frame is now Mild Steel.
•  Tire
•  Rubber All bearings
•  Stainless steel. All gears and fasteners mild steel. Leaf spring blades
•  Nylon. Cross members, axles, brackets, propeller shafts, Disc, rim, wheel hub
•  High grade ABS Plastic.
