3Dr Single Ttl Mini Radio Telemetry 433Mhz 250Mw For Pixhawk And Apm

3DR Single TTL MINI Radio Telemetry 433MHz 250mW for PIXHAWK and APM

Features :

1. MAVLink protocol framing status documents
2. Frequency modulation and Spread Spectrum (FHSS)
3. Self-adaption to time division multiplexing
4. Support LBT and AFA
5. Configurable duty cycle
6. Built-in error correcting code(up to 25% data bit error)
7. AT command configure data transmission
8. RT command remote control data transmission
9. Interchangeable air and ground 433MHz modules
10. Micro-USB port
11. 6-position Molex connector
12. 250mW maximum output power (adjustable)
13. SMA connector
14. 2-way full-duplex communication through adaptive TDM
15. UART interface
16. Transparent serial link
17. Configurable through *Mission Planner and *APM Planner
18. Based on the HM-TRP wireless module, with Si1000 8051 microcontroller and Si4432

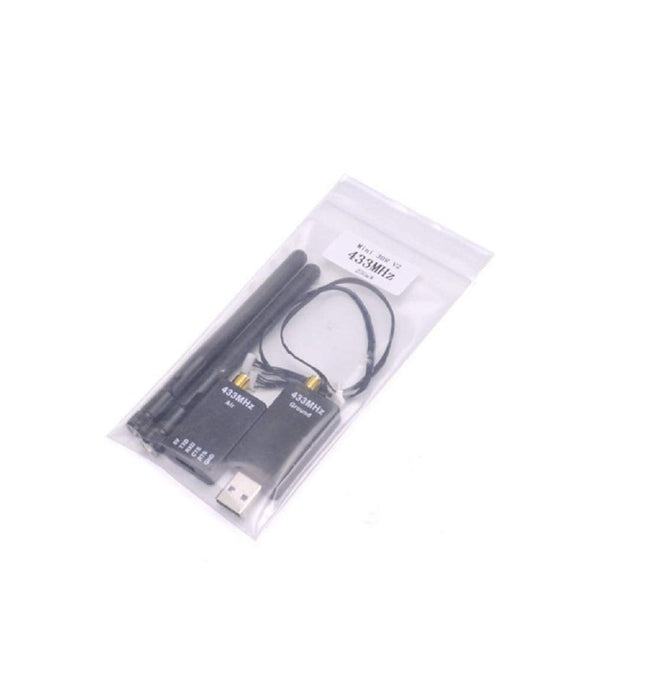

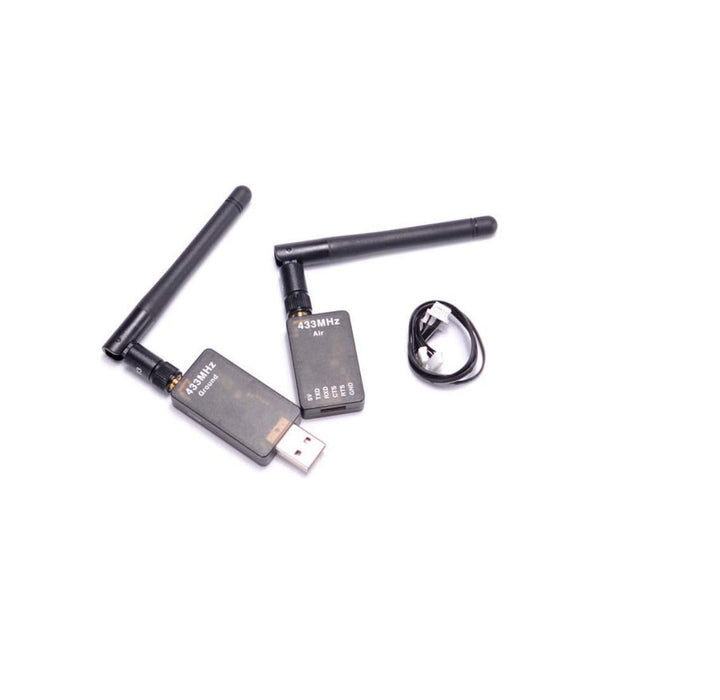

Package Includes:

1 x Radio Telemetry Base Station (USB Connection).

1 x Telemetry Tran receiver (Pin Header).

2 x 2.5dbi Antenna.

1 x 5-pin Lead cable for APM FC.

1 x 6-pin Lead cable for PIXHAWK FC.
