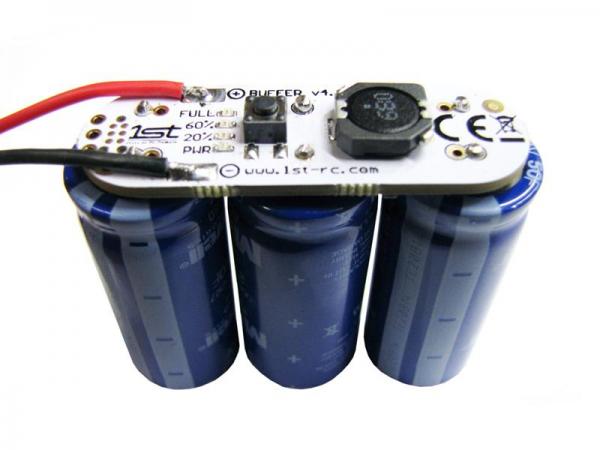

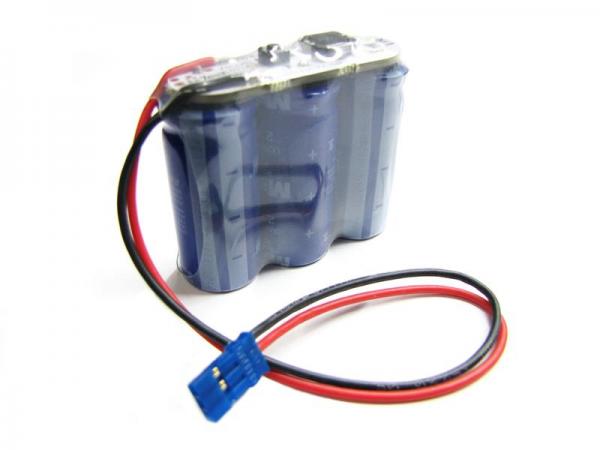

1st Buffer-Pack 50F for Helis 600-800 # 1st9541

1st Buffer-Pack 50F for Helis 600-800 # 1st9541

Overview:
32 bit, 48MHz MCU control of the buffer unit
Adaptive charging
current sensor
External alarm output *

Application:
Backup battery for electric helicopters for safe emergency landing
Current peak buffers for remote-controlled models (airplane, helicopters, etc.)
Effective buffering of servo return currents
Fully automatic setup **

Maximum ratings:
Maximum voltage (INPUT) 10V
Maximum buffer voltage (OUTPUT fully charged) 8.5V
Short-term peak current 25 amps

Technical specifications:
Width: 19 mm
Length: 56 mm
Height 29 mm
Weight: approx. 46 g
CAPs: 3 x 50 F
Cable length: 18 cm
Plug: Graupner / JR UNI
Input voltage: 5.6 V to 10 V
